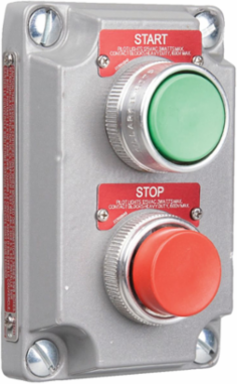

Killark XCS-0B4-U Aluminum Control Station with Start/Stop Push Buttons, 6.375 Inch x 5.875 Inch x 4.375 Inch
- MPN: XCS-0B4-U
- UPC: 783936890241
- PPN: HBL-XCS-0B4-U
- UNSPSC: 39122216
CAD
$513.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XCS Series - Aluminum Momentary Contact Double Push Button Cover With Device - Green Button With "Start" Nameplate - Red Button With "Stop"Nameplate - 2NO/2NC Contact Rating
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Key Specifications
- Number of Poles
- 2
- Special Features
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Country of Origin
- United States
- Color
- Green-Red
- Dimensions
- 6.375 in x 5.875 in x 4.375 in
- Height
- 4.375 in
- Width
- 5.875 in
- Actuator
- Momentary Pushbutton
- Application
- Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
- Frequency Rating
- 50/60 Hz
- Type
- Aluminum Cover With Two Push Buttons
- Description - Invoice
- CLI GRN/RED PB 2UNIV CV (CS)
- Harmonization Code
- 8536509999
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 1.46
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936890241
- NAICS Code
- 3359326103
Size6.375 in x 5.875 in x 4.375 in
ARRA CompliantContact Manufacturer
Back Box TypeSWB
Depth1-3/4 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length6.375 in
ActionSP (per circuit)
Amperage Rating10 A
Contact Rating60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Number Of Poles2
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE53360
SeriesXCS Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
