Killark XCS-0B13-C Aluminum Push Button with 120V Pilot Light - 7.5 Inch x 5.75 Inch x 4 Inch, 1NC Contact Rating
Killark XCS-0B13-C Aluminum Push Button with 120V Pilot Light - 7.5 Inch x 5.75 Inch x 4 Inch, 1NC Contact Rating
- MPN: XCS-0B13-C
- UPC: 783936890258
- PPN: HBL-XCS-0B13-C
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$537.22/ EA
Description

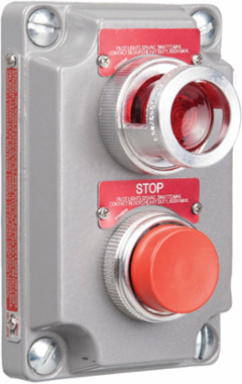

XCS Series - Aluminum Momentary Contact Push Button And 120V Pilot Light Cover With Device - Red Button With "Stop" Nameplate - Red Lens With Nameplate To Be Specified - 1NC Contact Rating
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Country of Origin
- United States
- Depth
- 1-3/4
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 7.5 in
- Actuator
- Momentary Pushbutton
- Application
- Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
- Contact Rating
- NEMA A600 - 7200 VA (make), 720 VA (break), 10A cont. @ 600V AC (thermal); NEMA Q300 - 69 VA (make & break), 2.5A cont. @ 250V DC (thermal).
- Operating Cycles
- 10,000 operations
- Special Features
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Width
- 5.75 in
- Number Of Poles
- 1
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- UL File Number
- E53360
- Series
- XCS Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936890258
Back Box TypeSWB
Dimensions7.5 in x 5.75 in x 4 in
Height4 in
ActionSP (per circuit)
Amperage Rating10 A
ColorGreen P.B., White Light
Number of Poles1
Size7.5 in x 5.75 in x 4 in
TypeAluminum Cover With Pilot Light And Push Button
Frequency Rating50/60 Hz
ARRA CompliantContact Manufacturer
Description - InvoiceCLI RED PL /RED N.C. PB CV (CS)
Harmonization Code8536509035
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging1.5
MaterialCopper-free aluminum
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
