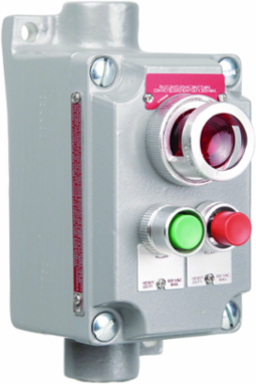

Killark XCS-5A15 Aluminum Control Station with 3/4 Inch Hub, Two Mini Push Buttons & Pilot Light
- MPN: XCS-5A15
- UPC: 783936891514
- PPN: HBL-XCS-5A15
- UNSPSC: 39122216
CAD
$1266.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XCS Series- Cover with Device - Aluminum Feed-Thru Momentary Contact Two Mini Red-Green Push Buttons And Red Pilot Light - Hub Size 3/4 Inch
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Key Specifications
- Country of Origin
- United States
- Depth
- 4-11/32 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Actuator
- Double Pushbutton and Pilot Light
- Application
- Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
- Contact Rating
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
- Special Features
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Frequency Rating
- 50/60 Hz
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CLI XCS-0A15 CV W/3/4" F-THRU(
- Harmonization Code
- 8536509035
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 3
- Series
- XCS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Back Box TypeSWB
Width3.000 in
ActionMomentary
Amperage Rating10 A
ColorGreen-Red P.B., Red Light
Number of Poles2
TypeAluminum Box And Cover With Pilot Light And Two Mini Push Buttons
Number Of Poles2
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE53360
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936891514
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
