Square D

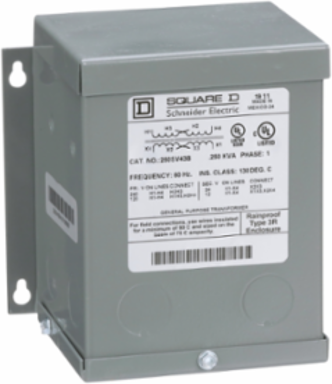

Square D 250SV43B Transformer, buck boost, encapsulated, 0.25kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 80C rise

Transformer, buck boost, encapsulated, 0.25kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 80C rise
Transformer, buck boost, encapsulated, 0.25kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 80C rise
Transformer, buck boost, encapsulated, 0.25kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 80C rise
Transformer, buck boost, encapsulated, 0.25kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 80C rise
Transformer, buck boost, encapsulated, 0.25kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 80C rise
  • MPN: 250SV43B
  • UPC: 785901876151
  • PPN: SCH-250SV43B

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$756.62/ EA

Description

A Buck and Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck and Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed (UL 506). Autotransformers can carry loads in excess of their nameplate rating. This Buck and Boost Transformer has a NEMA 3R rating, has a 120 x 240V primary voltage, and a 12/24V secondary voltage. This transformer has a rated power of 0.25KVA. This transformer has a temperature rise of 80 °C. This product has a UL listed, cULus & CSA certifications.

Specifications

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1407010
Pvc Free
Yes
Eu Rohs Directive
Compliant
Reach Free Of Svhc
Yes
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold

Specifications

Primary Voltage
120 x 240 V
Secondary Voltage
12/24 V
Product Or Component Type
Buck and Boost Transformer
Box Number
4A
Nema Degree Of ProtectionNEMA 3R
Temperature Rise80 °C
Rated Power In Va0.25 kVA
Insulation Temperature130 °C

Contractual warranty

Warranty
18 months
