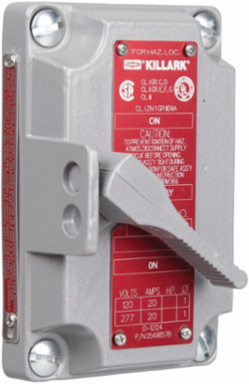

Killark XS-1D Aluminum 1-Pole Tumbler Switch Cover, 30A, 4.25 Inch Height, Gray
- MPN: XS-1D
- UPC: 783936925028
- PPN: HBL-XS-1D
- UNSPSC: 39122211
CAD
$299.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XS Series - Aluminum 1-Pole Tumbler Switch Cover With Device - 30A
Features
- Front lever rotary operated switch assemblies.
- Standard provisions for padlocking in either “ON” or “OFF” position.
- The lever is connected to a threaded stainless steel shaft which passes through the cover.
- Killark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Key Specifications
- Country of Origin
- China
- Depth
- 4-1/4 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 6.4 in
- Actuator
- Lever
- Application
- Used where making, breaking, or changing connections in an electric circuit is required.
- Number of Poles
- 1
- Special Features
- Killark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Width
- 6 in
- Number Of Poles
- 1
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11712
- UL File Number
- E53360
- Series
- XS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Back Box TypeSWB
Dimensions6.4 in x 6 in x 4.25 in
Height4.25 in
ActionSPST
Amperage Rating30 A
ColorGray
Size6.4 in x 6 in x 4.25 in
TypeAluminum Tumbler Switch Cover
Frequency Rating50/60 Hz
ARRA CompliantContact Manufacturer
Description - Invoice1/2" 3/4" 1P 30A TUMBLR SWITCH
Harmonization Code8536509040
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging1.18
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936925028
NAICS Code3353146111
Certifications
- EU RoHS Indicator
- Contact Manufacturer
