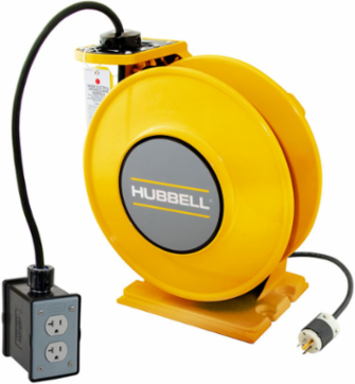

Hubbell Wiring Device-Kellems HBLI45123R20M1Y Yellow Industrial Cord Reel, 45 Ft Length, 20A Duplex Receptacle, UL Type 1
- MPN: HBLI45123R20M1Y
- UPC: 783585585055
- PPN: HBL-HBLI45123R20M1Y
- UNSPSC: 26121635
CAD
$2213.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Yellow Industrial Reel with Black Portable Outlet Box and (1) 20A Duplex Receptacle, UL Type 1, 45 Ft, #12/3 SJO, 20 A, 125 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Current / Amperage Rating
- 20 A
- Industry Standard(s)
- cULus Listed
- Cable Active Length
- 45 Ft
- Standard
- cULus Listed
- Voltage Rating
- 125 VAC
- General Literature Asset 1 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Style
- Two Outlets
- Description - Invoice
- IND REEL, W/(1) DPLX, BLK, 45', 12/3, Y
- Harmonization Code
- 8544429090
- MSDS Flag
- No
- Series
- inREACH® Series
- BOX SIZE
- (in)
- NAICS Code
- 335931A107
Cable Length45 Ft
Width14.200 in
ApplicationIndustrial
Cable Type#12/3 SJO
TypeReel With Duplex Receptacle(s)
Engineering Drawing 1 Display TextHBLI45123R20M1Y AutoCAD Drawing
General Literature Asset 2 Display TextPulp & Paper Solutions
Number Of Wires3-Wire
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A510
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783585585055
