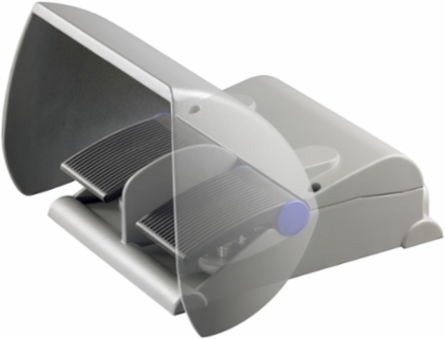

Schmersal 151181592 Double-Pedal Foot Switch with IP65 Protection, 2 Pedals, Metal Enclosure
- MPN: 151181592
- PPN: SCM-151181592
CAD
$720.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Double-Pedal Foot Switch with IP65 Protection, 2 Pedals, Metal Enclosure
Features
- 4 contacts per pedal
- double-pedal type
- Low operating height of pedal
- High level of stability
- Metal enclosure
- 2 cable entries M 25 x 1.5
Documentation & Downloads
Specifications
Key Specifications
- Width
- 295 mm
- Depth
- 274 mm
Height189 mm
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- Utilisation category DC-13
- 1 A
- Switching principle
- Snap action
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC

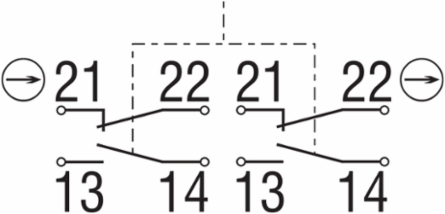

Switching elementNO contact, NC contact

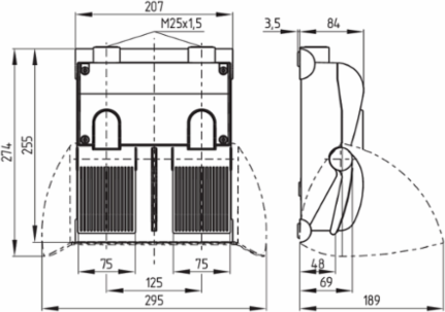

Mechanical data - Dimensions
- Width
- 295 mm
- Depth
- 274 mm
Height189 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
General data - Features
- Probing possible
- Yes
- Number of pedals, NO
- 2
Number of pedals, NC2
General data
- Standards
- BG-GS-ET-15 | DIN VDE 0660-200 | EN IEC 60947-5-1
- Enclosure coating material
- powder-coated
- Material of the pedal
- Glass-fibre, reinforced thermoplastic
- Colour of the housing
- RAL 9006 (White aluminum)
Enclosure materialAluminium
Material of the housing coverAluminium
Material of the protective shieldAluminium
Gross weight2,150 g
Ambient conditions
- Degree of protection
- IP65
Ambient temperature-25 ... +70 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Note (Cable section)
- All indications including the conductor ferrules.
Cable section, maximum1 x 2.5 mm²
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
Approvals - Standards
- Certificates
- cULus | CCC
