Schmersal 101157105 Position Switch, Rod Lever, Height 111.5 mm, IP65/IP67, 30,000,000 Operations
- MPN: 101157105
- PPN: SCM-101157105
CAD
$144.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Position Switch, Rod Lever, Height 111.5 mm, IP65/IP67, 30,000,000 Operations
Features
- Snap action with constant contact pressure up to switching point
- 1 Cable entry M 20 x 1.5
- Design to EN 50041
- Thermoplastic enclosure
- Lever angle adjustable in 10° steps
- Double-insulated
- Good resistance to oil and petroleum spirit
- Wide range of alternative actuators
- Actuator heads can be repositioned by 4 x 90°
Documentation & Downloads
Specifications
Safety appraisal
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN 60947-5-1
Mission Time20 Year(s)
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 230 VAC
- Utilisation category DC-13
- 24 VDC

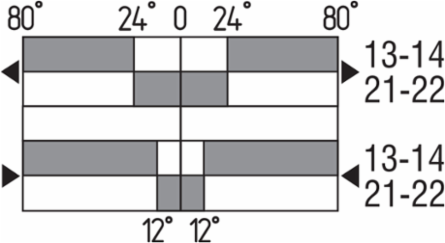

- Switching element
- NO contact, NC contact
- Switching frequency
- 5,000 /h
Required rated short-circuit current to EN 60947-5-11,000 A
Utilisation category AC-154 A
Utilisation category DC-134 A
Switching principleSnap switch element
Switchover time, maximum2 ms

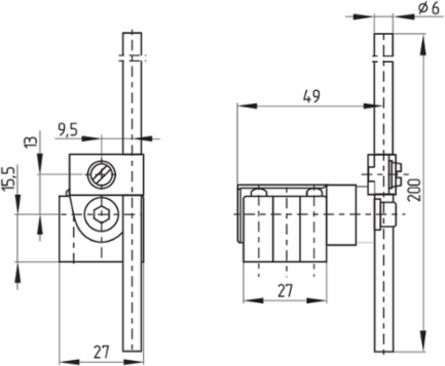

Mechanical data - Dimensions
- Length x Width x Height
- Height of sensor: 111.5 mm (without rod)
- Width of sensor
- 40.5 mm
Length of sensor52 mm
Ambient conditions - Insulation value
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 20,000,000 Operations
General data - Features
- Number of auxiliary contacts
- 1
Number of safety contacts1
General data
- Housing construction form
- Norm construction design
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Lever material
- Metal film
- Gross weight
- 165 g
Actuator type to DIN EN 50041D
Material of the contacts, electricalSilver
Material of the rodPlastic
Ambient conditions
- Degree of protection
- IP65 to EN 60529 | IP67 to EN 60529
- Ambient temperature, maximum
- +80 °C
Ambient temperature, minimum-30 °C
Mechanical data - Connection technique
- Terminal Connector
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.75 mm²
Note (Cable section)All indications about the cable section are including the conductor ferrules.
Mechanical data
- Actuating element
- Rod lever
- Actuating speed, maximum
- 2.5 m/s
- Note Bounce duration
- Bounce duration in accordance with actuating speed
Mechanical life, minimum30,000,000 Operations
Note (Actuating speed)Actuating speed with actuating angle 30° to switch axis
Actuating torque, minimum0.3 Nm
Approval - Standards
- Certificates
- cULus | CCC | EAC
