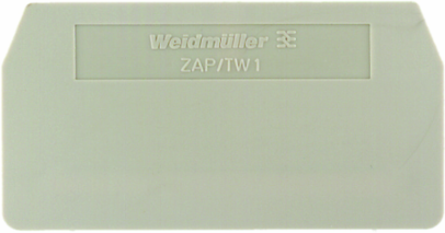

Weidmuller 1608740000 ZAP/TW 1
- MPN: 1608740000
- PPN: WDM-1608740000
CAD
$1.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Z-series, Accessories, End plate, Seperation plate
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 2 mm
- Height
- 59.5 mm
- Depth
- 30.5 mm
- Net weight
- 2.951 g
Width (inches)0.079 inch
Height (inches)2.343 inch
Depth (inches)1.201 inch
Additional Technical Data
- Installation advice
- Direct mounting
Snap-onYes
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Classifications
- ETIM 6.0
- EC000886
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC000886
eClass 9.127-14-11-33
UNSPSC30-21-18-27
System Specifications
- Version
- End and intermediate plate
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
