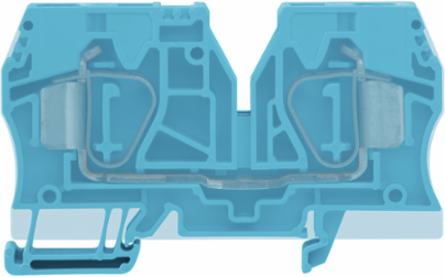

Weidmuller 1766240000 ZEI 16 BL
- MPN: 1766240000
- PPN: WDM-1766240000
CAD
$5.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Supply terminal, Tension-clamp connection, 16 mm², 500 V, 76 A, blue
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, cURus, EAC, EXIKONF, KEMAKEUR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 14.7 mm
- Height
- 82.5 mm
- Depth
- 50.5 mm
- Depth including DIN rail
- 51.5 mm
Width (inches)0.579 inch
Height (inches)3.248 inch
Depth (inches)1.988 inch
Net weight44.19 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-1152892
- Current size C (CSA)
- 65 A
- Voltage size B (CSA)
- 600 V
- Voltage size D (CSA)
- 600 V
- Wire cross section min. (CSA)
- 14 AWG
Current size B (CSA)65 A
Current size D (CSA)5 A
Voltage size C (CSA)600 V
Wire cross section max. (CSA)4 AWG
Additional Technical Data
- Explosion-tested version
- No
- Open sides
- closed
Number of similar terminals1
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourblue
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
UNSPSC30-21-18-11
System Specifications
- Version
- Supply terminal, Tension-clamp connection, for plug-in cross-connector, in closed state
- Number of levels
- 1
- Levels cross-connected internally
- No
- Rail
- TS 35
End cover plate requiredNo
Number of clamping points per level2
PE connectionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 16 mm²
- Rated current
- 76 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 2.43 W
- Pollution severity
- 3
Rated voltage500 V
Current at maximum wires76 A
Volume resistance according to IEC 60947-7-x0.42 mΩ
Rated impulse withstand voltage8 kV
Conductors For Clamping (Rated Connection)
- Blade size
- 1.0 x 5.5 mm
- Clamping range, min.
- 1.5 mm²
- Connection cross-section, stranded, min.
- 1.5 mm²
- Gauge to IEC 60947-1
- A7
- Stripping length
- 18 mm
- Wire connection cross section AWG, max.
- AWG 4
- Wire connection cross section, finely stranded, max.
- 16 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 1.5 mm²
- Wire connection cross-section, solid core, max.
- 16 mm²
Clamping range, max.25 mm²
Connection cross-section, stranded, max.25 mm²
Connection directiontop
Number of connections2
Type of connectionTension-clamp connection
Wire connection cross section AWG, min.AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.16 mm²
Wire connection cross-section, finely stranded, min.1.5 mm²
Wire connection cross-section, solid core, min.1.5 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 14 AWG
- Conductor size Field wiring min. (cURus)
- 14 AWG
- Voltage size C (cURus)
- 600 V
Conductor size Factory wiring max. (cURus)4 AWG
Conductor size Field wiring max. (cURus)4 AWG
Current size C (cURus)65 A
