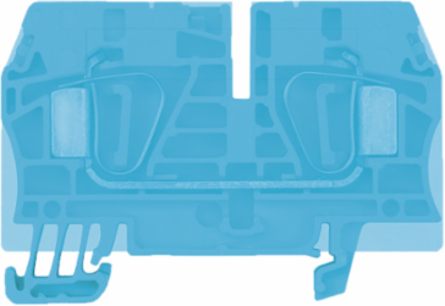

Weidmuller 1530040000 ZEI 6 BL
- MPN: 1530040000
- PPN: WDM-1530040000
CAD
$5.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Supply terminal, Tension-clamp connection, 6 mm², 500 V, 41 A, blue
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 10 mm |
|---|---|
| Height | 65 mm |
| Depth | 45 mm |
| Depth including DIN rail | 45.5 mm |
| Width (inches) | 0.394 inch |
|---|---|
| Height (inches) | 2.559 inch |
| Depth (inches) | 1.772 inch |
| Net weight | 20.46 g |
Dimensions
| TS 35 offset | 39 mm |
|---|
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of mounting | Snap-on |
| Open sides | closed |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | blue |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Tension-clamp connection, Supply terminal, for plug-in cross-connector, in closed state |
|---|---|
| Number of levels | 1 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| End cover plate required | No |
|---|---|
| Number of clamping points per level | 2 |
| PE connection | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Rating Data
| Rated cross-section | 6 mm² |
|---|---|
| Rated current | 41 A |
| Standards | IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Pollution severity | 4 |
| Rated voltage | 500 V |
|---|---|
| Current at maximum wires | 57 A |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 8 kV |
Conductors For Clamping (Rated Connection)
| Blade size | 1.0 x 5.5 mm |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Gauge to IEC 60947-1 | A5 |
| Stripping length | 13 mm |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Clamping range, max. | 10 mm² |
|---|---|
| Connection direction | top |
| Number of connections | 2 |
| Twin wire-end ferrules, max. | 2 mm² |
| Type of connection | Tension-clamp connection |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
