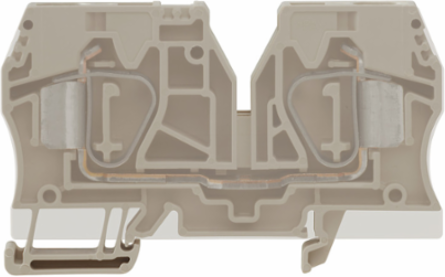

Weidmuller 1745350000 ZEI 16

MPN: 1745350000
PPN: WDM-1745350000

$5.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Supply terminal, Tension-clamp connection, 16 mm², 500 V, 76 A, dark beige

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CSA, cURus, EAC, KEMAKEUR
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	14.7 mm
Height	82.5 mm
Depth	50.5 mm
Depth including DIN rail	51.5 mm

Width (inches)	0.579 inch
Height (inches)	3.248 inch
Depth (inches)	1.988 inch
Net weight	43.79 g

Csa Rating Data

Certificate No. (CSA)	200039-1152892
Current size C (CSA)	65 A
Voltage size B (CSA)	600 V
Voltage size D (CSA)	600 V
Wire cross section min. (CSA)	14 AWG

Current size B (CSA)	65 A
Current size D (CSA)	5 A
Voltage size C (CSA)	600 V
Wire cross section max. (CSA)	4 AWG

Additional Technical Data

Explosion-tested version	No
Number of similar terminals	1
Type of mounting	Snap-on

Installation advice	Busbar
Open sides	closed

Material Data

Material	Wemid
UL 94 flammability rating	V-0

Colour	dark beige

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000897
eClass 9.0	27-14-11-20
eClass 10.0	27-14-11-20

ETIM 7.0	EC000897
eClass 9.1	27-14-11-20
UNSPSC	30-21-18-11

System Specifications

Version	Supply terminal, Tension-clamp connection, for plug-in cross-connector, in closed state
Number of levels	1
Levels cross-connected internally	No
Rail	TS 35

End cover plate required	No
Number of clamping points per level	2
PE connection	No

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	120 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Rating Data

Rated cross-section	16 mm²
Rated current	76 A
Standards	IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x	2.43 W
Pollution severity	3

Rated voltage	500 V
Current at maximum wires	76 A
Volume resistance according to IEC 60947-7-x	0.42 mΩ
Rated impulse withstand voltage	8 kV

Conductors For Clamping (Rated Connection)

Blade size	1.0 x 5.5 mm
Clamping range, min.	1.5 mm²
Connection cross-section, stranded, min.	1.5 mm²
Gauge to IEC 60947-1	A7
Stripping length	18 mm
Wire connection cross section AWG, max.	AWG 4
Wire connection cross section, finely stranded, max.	16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	1.5 mm²
Wire connection cross-section, solid core, max.	16 mm²

Clamping range, max.	25 mm²
Connection cross-section, stranded, max.	25 mm²
Connection direction	top
Number of connections	2
Type of connection	Tension-clamp connection
Wire connection cross section AWG, min.	AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	16 mm²
Wire connection cross-section, finely stranded, min.	1.5 mm²
Wire connection cross-section, solid core, min.	1.5 mm²

Ul Rating Data

Certificate No. (cURus)	E60693
Conductor size Factory wiring min. (cURus)	14 AWG
Conductor size Field wiring min. (cURus)	14 AWG
Voltage size C (cURus)	600 V
