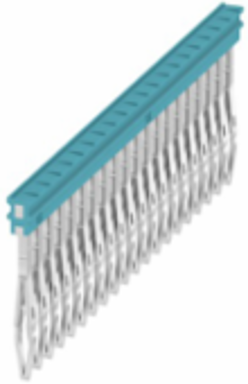

Weidmuller 1985700000 ZQV 1.5N/20 BL
Weidmuller 1985700000 ZQV 1.5N/20 BL
- MPN: 1985700000
- PPN: WDM-1985700000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$13.32/ EA
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 70 mm
- Height
- 21.9 mm
- Depth
- 2.8 mm
- Net weight
- 6.492 g
Width (inches)2.756 inch
Height (inches)0.862 inch
Depth (inches)0.11 inch
Dimensions
- Pitch in mm (P)
- 3.5 mm
Additional Technical Data
- Explosion-tested version
- Yes
Type of fixingPlugged
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourblue
Classifications
- ETIM 6.0
- EC000489
- eClass 9.0
- 27-14-11-40
- eClass 10.0
- 27-14-11-40
ETIM 7.0EC000489
eClass 9.127-14-11-40
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
Storage temperature, min.10 °C
Rating Data
- Rated current
- 17.5 A
