Weidmuller 1528230000 ZQV 4N/10 BL
- MPN: 1528230000
- PPN: WDM-1528230000
CAD
$7.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

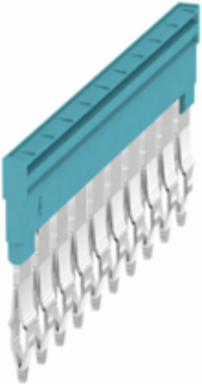

ZQV 4N/10 BL
Documentation & Downloads
Specifications
Approvals
- Approvals
- ABS, BURVER, DNV GL, LLOYDSREG, RINA
ROHSConform
Dimensions And Weights
- Width
- 58.7 mm
- Height
- 2.8 mm
- Depth
- 27.95 mm
- Net weight
- 7.556 g
Width (inches)2.311 inch
Height (inches)0.11 inch
Depth (inches)1.1 inch
Dimensions
- Pitch in mm (P)
- 6.1 mm
Additional Technical Data
- Explosion-tested version
- Yes
Type of fixingPlugged
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourblue
Classifications
- ETIM 6.0
- EC000489
- eClass 9.0
- 27-14-11-40
- eClass 10.0
- 27-14-11-40
ETIM 7.0EC000489
eClass 9.127-14-11-40
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
Rating Data
- Rated current
- 32 A
