Weidmuller 1771950000 ZTL 6/STB

MPN: 1771950000
PPN: WDM-1771950000

$12.25

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

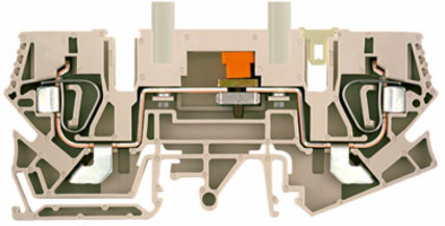

Test-disconnect terminal, Tension-clamp connection, 6 mm², 400 V, 41 A, sliding, dark beige

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CSA, EAC, KEMAKEUR, UR
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	8 mm
Height	106 mm
Depth	46.5 mm
Depth including DIN rail	48 mm

Width (inches)	0.315 inch
Height (inches)	4.173 inch
Depth (inches)	1.831 inch
Net weight	34.864 g

Dimensions

TS 32 offset	54.5 mm

Csa Rating Data

Certificate No. (CSA)	200039-1152892
Current size C (CSA)	33 A
Voltage size C (CSA)	300 V
Wire cross section min. (CSA)	20 AWG

Current size B (CSA)	33 A
Voltage size B (CSA)	300 V
Wire cross section max. (CSA)	8 AWG

Additional Technical Data

Explosion-tested version	No
Open sides	right

Installation advice	Direct mounting
Type of mounting	Snap-on

Material Data

Material	Wemid
UL 94 flammability rating	V-0

Colour	dark beige

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000902
eClass 9.0	27-14-11-26
eClass 10.0	27-14-11-26

ETIM 7.0	EC000902
eClass 9.1	27-14-11-26
UNSPSC	30-21-18-11

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

System Specifications

Version	Tension-clamp connection, Spacer, With sockets, for plug-in cross-connector, One end without connector
Number of potentials	1
Number of clamping points per level	2
Levels cross-connected internally	No
Rail	TS 35, TS 32
PE function	No

End cover plate required	Yes
Number of levels	1
Number of potentials per tier	1
PE connection	No
N-function	No
PEN function	No

Disconnect Terminals

Cross-disconnect	pluggable
Slitting	sliding

Integral test socket	Yes

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	120 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Conductors For Clamping (Additional Connection)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.	6 mm²

Rating Data

Rated cross-section	6 mm²
Rated current	41 A
Standards	IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x	1.31 W
Pollution severity	3

Rated voltage	400 V
Current at maximum wires	52 A
Volume resistance according to IEC 60947-7-x	0.78 mΩ
Rated impulse withstand voltage	8 kV

Conductors For Clamping (Rated Connection)

Blade size	0.8 x 4.0 mm
Clamping range, min.	0.5 mm²
Connection cross-section, stranded, min.	1.5 mm²
Gauge to IEC 60947-1	A5
Stripping length	13 mm
Tightening torque, min.	0.5 Nm
Wire connection cross section, finely stranded, max.	6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	10 mm²

Clamping range, max.	10 mm²
Connection cross-section, stranded, max.	6 mm²
Connection direction	top
Number of connections	2
Tightening torque, max.	0.6 Nm
Type of connection	Tension-clamp connection
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	6 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²
