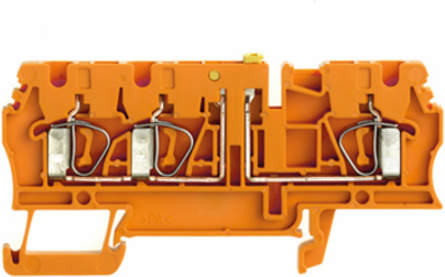

Weidmuller 8731690000 ZTR 2.5/3AN OR
- MPN: 8731690000
- PPN: WDM-8731690000
CAD
$5.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, Pivoting, orange
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, EAC, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 79.5 mm
- Depth
- 38.5 mm
- Depth including DIN rail
- 41 mm
Width (inches)0.201 inch
Height (inches)3.13 inch
Depth (inches)1.516 inch
Net weight11.96 g
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 3
- Type of mounting
- Snap-on
Installation adviceDirect mounting
Open sidesright
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourorange
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000902
- eClass 9.0
- 27-14-11-26
- eClass 10.0
- 27-14-11-26
ETIM 7.0EC000902
eClass 9.127-14-11-26
UNSPSC30-21-18-11
System Specifications
- Version
- Tension-clamp connection, 3 connections, Spacer, for plug-in cross-connector, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 3
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Disconnect Terminals
- Cross-disconnect
- without
- Slitting
- Pivoting
Integral test socketYes
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 1.5 mm²
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 20 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage500 V
Current at maximum wires20 A
Volume resistance according to IEC 60947-7-x1.33 mΩ
Rated impulse withstand voltage6 kV
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.05 mm²
- Gauge to IEC 60947-1
- A3
- Stripping length
- 10 mm
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 2.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Connection directiontop
Number of connections3
Type of connectionTension-clamp connection
Wire connection cross section AWG, min.AWG 30
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 30 AWG
- Conductor size Field wiring min. (UR)
- 30 AWG
- Voltage size C (UR)
- 600 V
Conductor size Factory wiring max. (UR)12 AWG
Conductor size Field wiring max. (UR)12 AWG
Current size C (UR)20 A
