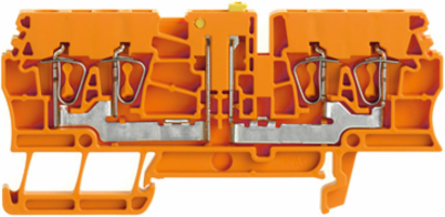

Weidmuller 7920940000 ZTR 2.5/4AN OR
- MPN: 7920940000
- PPN: WDM-7920940000
CAD
$5.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Test-disconnect terminal, Tension-clamp connection, 2.5 mm², 400 V, 16 A, Pivoting, orange
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, cURus, EAC, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 82.5 mm
- Depth
- 38.5 mm
- Depth including DIN rail
- 41 mm
Width (inches)0.201 inch
Height (inches)3.248 inch
Depth (inches)1.516 inch
Net weight11.57 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-1152892
- Current size C (CSA)
- 10 A
- Voltage size C (CSA)
- 300 V
- Wire cross section min. (CSA)
- 26 AWG
Current size B (CSA)10 A
Voltage size B (CSA)300 V
Wire cross section max. (CSA)12 AWG
Additional Technical Data
- Explosion-tested version
- No
- Open sides
- right
Installation adviceDirect mounting
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourorange
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000902
- eClass 9.0
- 27-14-11-26
- eClass 10.0
- 27-14-11-26
ETIM 7.0EC000902
eClass 9.127-14-11-26
UNSPSC30-21-18-11
System Specifications
- Version
- Tension-clamp connection, Spacer, for plug-in cross-connector, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 4
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Disconnect Terminals
- Cross-disconnect
- without
- Slitting
- Pivoting
Integral test socketNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 1.5 mm²
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 16 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage400 V
Current at maximum wires16 A
Volume resistance according to IEC 60947-7-x1.33 mΩ
Rated impulse withstand voltage6 kV
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.05 mm²
- Gauge to IEC 60947-1
- A2
- Stripping length
- 10 mm
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 2.5 mm²
Clamping range, max.2.5 mm²
Connection directiontop
Number of connections4
Type of connectionTension-clamp connection
Wire connection cross section AWG, min.AWG 30
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring max. (UR)
- 12 AWG
- Conductor size Factory wiring min. (UR)
- 30 AWG
- Conductor size Field wiring max. (UR)
- 12 AWG
- Conductor size Field wiring min. (UR)
- 30 AWG
- Current size B (cURus)
- 10 A
- Current size D (cURus)
- 10 A
- Voltage size D (UR)
- 300 V
Certificate No. (cURus)E60693
Conductor size Factory wiring max. (cURus)12 AWG
Conductor size Factory wiring min. (cURus)30 AWG
Conductor size Field wiring max. (cURus)12 AWG
Conductor size Field wiring min. (cURus)30 AWG
Current size D (UR)10 A
Voltage size B (cURus)300 V
Voltage size D (cURus)300 V
