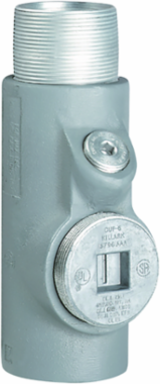

Killark ENY-5-T 1-1/2 Inch Aluminum Sealing Fitting with Nipple, Powder Epoxy Finish, Class I Hazardous Rating
- MPN: ENY-5-T
- UPC: 783936111179
- PPN: HBL-ENY-5-T
- UNSPSC: 39131708
CAD
$134.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1½" ENY Seal Fitting Aluminum with Nipple Male/Female
Features
- Minimal turn radius for optimal spacing of both enclosures and conduit
- Large openings for ease of access to conductors for proper dam installation
- Engineered to latest 419 hub specifications for superior continuity and ingress protection
- Integral bushings to protect conductors during installation
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Finish
- Powder Epoxy Paint
- General Literature Asset 1 Display Text
- Hazardous-rated seal-off fittings in expanded trade sizes and with improved design
- Country of Origin
- India
- Width
- 3.250 in
- Hub Size
- 1-1/2"
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- ENY Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936111179
- Master Pack Description
- Each
Special FeaturesCopper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
ARRA CompliantContact Manufacturer
ColorGray
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
TypeSealing Fitting With Nipple
Description - InvoiceSEAL FTG 1-1/2" AL W/ NIPPLE
Harmonization Code7609000299
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging1.4
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code3359323114
