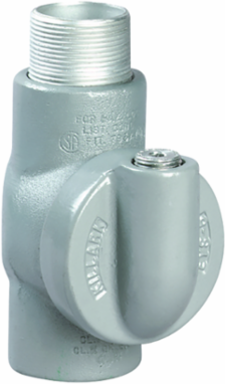

Killark EYS-5-T Aluminum EYS Seal Fitting 1-1/2 Inch with Nipple, Class I Hazardous Location
Killark EYS-5-T Aluminum EYS Seal Fitting 1-1/2 Inch with Nipple, Class I Hazardous Location
- MPN: EYS-5-T
- UPC: 783936111056
- PPN: HBL-EYS-5-T
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$200.74/ EA
Description
1-1/2" EYS Seal Fitting Aluminum, w/nipple Male/Female
Features
- Large opening for easy packing of fiber and pouring of compound
- Integral bushings in conduit hubs to protect conductor insulation from damage
- NPT tapped hubs to ensure ground continuity
- 25% conductor fill
- EYS-T style supplied with removable close nipples
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Specifications
Specifications
- Country of Origin
- MX
- Each - Width
- 2.438 in
- Application
- Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
- Finish
- Powder Epoxy Paint
- Special Features
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- EYS Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936111056
- Master Pack Description
- Each
Width2.438 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ColorGray
Hub Size1-1/2"
TypeSealing Fitting With Nipple
ARRA CompliantContact Manufacturer
Description - InvoiceEYS SEAL FTG AL 1-1/2" W/ NIPPLE
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging1.16
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.800 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
