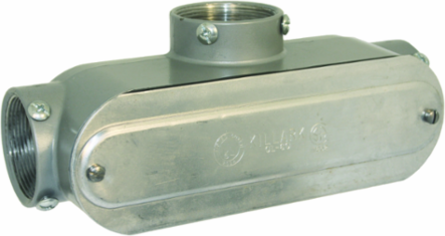

Killark COT-5CG Aluminum 1-1/2 Inch T Hub Conduit Body with Cover & Gasket, 33 cu. in. Volume
Killark COT-5CG Aluminum 1-1/2 Inch T Hub Conduit Body with Cover & Gasket, 33 cu. in. Volume
- MPN: COT-5CG
- UPC: 783936067810
- PPN: HBL-COT-5CG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$269.89/ EA
Description
1-1/2" T Hub, Aluminum Combo Conduit Body
Features
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 33 cu. in.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 4.000 in
- Color
- Gray
- Height
- 3 in
- Length
- 10 in
- Type
- Conduit Body With Cover & Gasket
- Cover Type
- Stamped
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- COMBO T CONDUIT BODY AL, CVR,GASK 1 1/2"
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 2 EA
- Sub Class Code
- D30D231
- Gross Weight with Packaging
- 2.17
- UL File Number
- E3397
- Series
- CO Series
- BOX SIZE
- 3.000x10.000x4.000 (in)
- Carton - Number of Sub Packs
- 2
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936067810
- Master Pack Description
- Each
Dimensions10 in x 4 in x 3 in
ApplicationTo provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit.
FinishPowder Epoxy Paint
Hub Size1-1/2"
Special FeaturesCombination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 33 cu. in.
Width4 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
CSA File NumberLR11852
Hub PatternT
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack17.280 lb.
Carton - Pack DescriptionCarton
Carton - Total Units2 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
