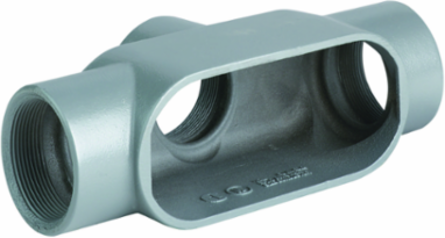

Killark TB57 1-1/2 Inch Iron TB Hub Conduit Body, 9.625 Inch Length, Powder Epoxy Finish
Killark TB57 1-1/2 Inch Iron TB Hub Conduit Body, 9.625 Inch Length, Powder Epoxy Finish
- MPN: TB57
- UPC: 783936011844
- PPN: HBL-TB57
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$210.46/ EA
Description
1-1/2" TB Hub, Iron Duraloy 7 Conduit Body,
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Specifications
Specifications
- Country of Origin
- India
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 4.375 in
- Length
- 9.625 in
- Type
- Conduit Body
- Weight
- 3.68 lb.
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- TB
- Material
- Iron
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions9.625 in x 5.875 in x 4.375 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
FinishPowder Epoxy Paint
Hub Size1-1/2"
Special FeaturesIntermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Width5.875 in
Engineering Drawing 1 Display TextTB57 Engineering Drawing
ARRA CompliantContact Manufacturer
Description - InvoiceDURALOY7 1-1/2" TB COND BDY FE
Harmonization Code7307110030
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging3.68
UL File NumberE3397
SeriesDuraloy 7 Series
Carton - SCC-14 Next Lower Level Sub Pack00783936011844
Certifications
- EU RoHS Indicator
- Contact Manufacturer
