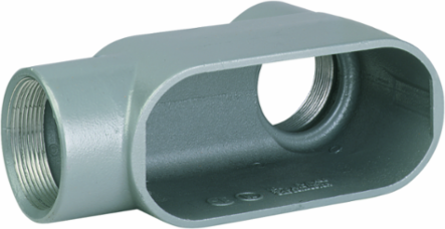

Killark LB47 1-1/4 Inch LB Hub Conduit Body, Iron, NEMA 3 Seal, Wet Location Suitable
Killark LB47 1-1/4 Inch LB Hub Conduit Body, Iron, NEMA 3 Seal, Wet Location Suitable
- MPN: LB47
- UPC: 783936011035
- PPN: HBL-LB47
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$129.26/ EA
Description
1-1/4" LB Hub, Iron Duraloy 7 Conduit Body
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Specifications
Specifications
- Finish
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Hub Size
- 1-1/4"
- Weight
- 2.44 lb.
- Engineering Drawing 1 Display Text
- LB47 Engineering Drawing
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- LB
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.880 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2 EA
Special FeaturesIntermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Country of OriginIndia
Dimensions7 in x 3 in x 4 in
Height4 in
Length7 in
Width3 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
TypeConduit Body
Description - InvoiceDURALOY7 1 1/4" LB COND BDY FE
Harmonization Code7307110200
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging2.44
UL File NumberE3397
SeriesDuraloy 7 Series
BOX SIZE4.125x11.875x7.375 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936011035
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
