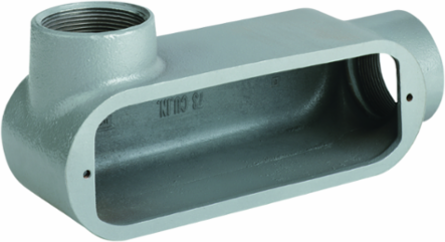

Killark OLL-4M 1-1/4 Inch LL Hub Conduit Body, Iron, Raintight with 32 cu. in. Volume
- MPN: OLL-4M
- UPC: 783936480558
- PPN: HBL-OLL-4M
- UNSPSC: 39131708
CAD
$144.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1-1/4" LL Hub, Iron O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 32 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Hub Size
- 1-1/4"
- Special Features
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 32 cu. in.
- Width
- 3.5 in
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- LL
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.160 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2
- Pallet - GTIN - Package
- 50783936480553
- NAICS Code
- 3359323110
Dimensions8.125 in x 3.5 in x 2.625 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height2.625 in
Length8.125 in
TypeConduit Body
ARRA CompliantContact Manufacturer
Description - InvoiceDURALOY 1 1/4" LL COND BDY
Harmonization Code7307193060
Lead Time70 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging2.58
UL File NumberE3397
SeriesO Series
BOX SIZE4.750x11.625x5.875 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936480558
Master Pack DescriptionEach
Pallet Weight0.000 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
