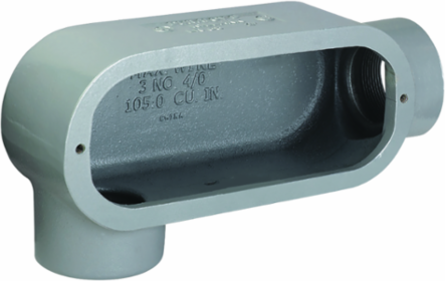

Killark LR448 1-1/4 Inch LR Hub Iron Conduit Body, Raintight Design, Powder Epoxy Finish
- MPN: LR448
- UPC: 783936481265
- PPN: HBL-LR448
- UNSPSC: 39131708
CAD
$127.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1-1/4" LR Hub, Iron Duraloy 8 Conduit Body
Features
- Completely interchangeable with competative bodies, gaskets, and covers.
- Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing.
- Raintight when used with gasketed covers.
- Stainless steel screws on stamped and cast covers.
- Smooth integral wire bushings.
- Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Finish
- Powder Epoxy Paint
- Hub Size
- 1-1/4"
- Special Features
- Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
- Width
- 4 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 3.4
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936481265
- NAICS Code
- 3359323110
Dimensions8 in x 4 in x 3 in
ColorGray
Height3 in
Length8 in
TypeConduit Body
Engineering Drawing 1 Display TextLR448 Engineering Drawing
ARRA CompliantContact Manufacturer
Description - InvoiceCOND BODY,LR,GRAY IRON 1 1/4"
Harmonization Code7307110030
Lead Time49 wk
Order Multiple1 EA
Sub Class CodeD30D230
Hub PatternLR
SeriesDuraloy 8 Series
BOX SIZE(in)
Master Pack DescriptionEach
