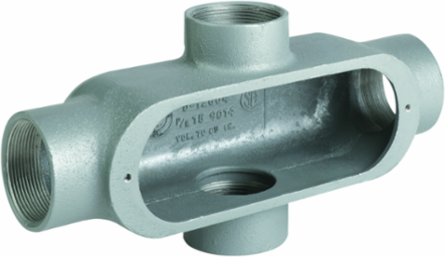

Killark OX-4M 1-1/4 Inch Iron O Series Conduit Body, Raintight, 32 cu. in. Volume

MPN: OX-4M
UPC: 783936480947
PPN: HBL-OX-4M
UNSPSC: 39131708

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$192.74/ EA

Qty:

Loading add to cart quantity...

Description

1-1/4" X Hub, Iron O Series Conduit Body

Features

Raintight when used with gasketed covers.
Malleable iron suitable for use in concrete.
Interchangeable with competitive products.
Stainless steel screws on stamped and cast covers.
Tapered threaded hubs (NPT).
Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 32 cu. in.

Specifications

Certifications

EU RoHS Indicator: Contact Manufacturer

Specifications

Country of Origin: India

Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).

Color: Gray

Hub Size: 1-1/4"

Special Features: Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 32 cu. in.

Width: 5 in

Class Code: D30

Freight Class Code: 06316009

Image Actual Or Representative: R

MSDS Flag: No

Returnable Indicator: Yes

CSA File Number: LR11852

Hub Pattern: X

Material: Iron

Base Unit of Measure: EA

Master Pack Description: Each

Dimensions10 in x 5 in x 3 in

ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.

Height3 in

Length10 in

TypeConduit Body

ARRA CompliantContact Manufacturer

Description - InvoiceDURALOY 1 1/4" X COND BDY FE

Harmonization Code7307193060

Lead Time70 wk

Order Multiple1 EA

Sub Class CodeD30D230

Gross Weight with Packaging3.8

UL File NumberE3397

SeriesO Series

Carton - SCC-14 Next Lower Level Sub Pack00783936480947
