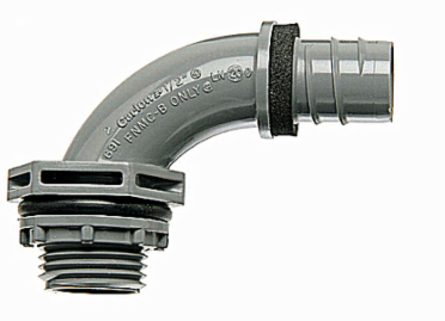

Carlon LN20DA 1/2 Inch Liquidtight Non-Metallic Fitting, 90 Degree, PVC, Grey
- MPN: LN20DA
- UPC: 034481043959
- PPN: T-B-LN20DA
CAD
$10.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1/2 Inch, 90 Degree, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
Features
- Unique design, the simple one-piece body requires no disassembly of components for installation. The system is so strong that there is no need for a compression nut.
- PVC construction of the fitting and locknut provides unparalleled protection from water, oil and dust.
- Non-conductive and will not corrode or rust.
- Temperatures up to 140 degree F (60 degree C)
Specifications
European Specifications (ETIM)
| ETIM | EC001178 Screw connection for protective plastic hose |
|---|---|
| Model | 90°-elbow |
| Construction type | External thread |
| Thread length | 14.22mm |
| Material screw gland | Other |
| Nominal size in inch | 1/2 inch |
|---|---|
| Revolving thread | N |
| Type of connection | Plug-in connection |
| One-piece | Y |
| Colour | Grey |
North American Specifications (UNSPSC)
| UNSPSC | 39121420 Liquid tight connectors |
|---|---|
| Brand Name | Carlon |
| Standard | UL E23018, CSA |
| Material | Non-Metallic |
| IGCC | 4585 Liquid tight connectors |
|---|---|
| Type | Liquidtight Fittings |
| Size | 1/2 Inch |
Packaging
| Outer Quantity | 100 |
|---|---|
| Weight Uom | 0.04 lbs. Each |
| Outer Dimensions (inches) | 11.4x7.6x5.5 |
|---|
