Killark

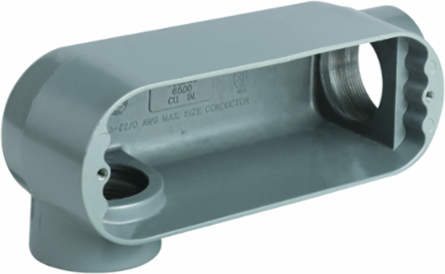

Killark OLR-1 ½ Inch LR Hub O Conduit Body, 4 cu. in Volume, Powder Epoxy Paint Finish

½ Inch LR Hub O Conduit Body, 4 cu. in Volume, Powder Epoxy Paint Finish
  • MPN: OLR-1
  • UPC: 783936490519
  • PPN: HBL-OLR-1
  • UNSPSC: 39131708

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$21.82/ EA

Description

½" LR Hub O Series Conduit Body

Features

  • Raintight when used with gasketed covers.
  • Malleable iron suitable for use in concrete.
  • Interchangeable with competitive products.
  • Stainless steel screws on stamped and cast covers.
  • Tapered threaded hubs (NPT).
  • Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 4 cu. in.

Specifications

Specifications

Country of Origin
United States
Hazardous Rating(s)
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Color
Gray
Hub Size
1/2"
Special Features
Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 4 cu. in.
Width
2 in
Engineering Drawing 1 Display Text
OLR-1 Engineering Drawing
Class Code
D30
Freight Class Code
06316009
Image Actual Or Representative
R
MSDS Flag
No
Returnable Indicator
No
CSA File Number
LR11852
Hub Pattern
LR
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Base Unit of Measure
EA
Carton - Gross Weight per Pack
2.700 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Dimensions5 in x 2 in x 2 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height2 in
Length5 in
TypeConduit Body
Weight0.27 lb.
ARRA CompliantContact Manufacturer
Description - Invoice1/2" ALUM CONDUIT BODY TYPE LR
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging0.27
UL File NumberE3397
SeriesO Series
BOX SIZE4.250x7.625x5.875 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783936490519
Master Pack DescriptionEach

Certifications

EU RoHS Indicator
Contact Manufacturer
