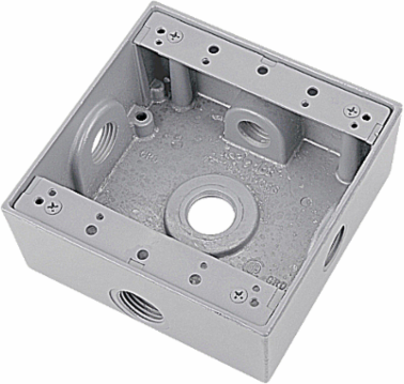

Red Dot 2IH5S2-2 Weatherproof Box, 31.8 Cubic Inches, 5 Outlets, Aluminum, Silver
- MPN: 2IH5S2-2
- UPC: 042269393981
- PPN: T-B-2IH5S2-2
CAD
$39.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Two Gang Universal Weatherproof Box, 31.8 Cubic Inches, Hub Size 3/4 Inch, Silver, Aluminum, 5 Outlets (2-Sides) with 1 on Top, Bottom, Both Sides, and Back
Features
- Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
- Clean cover edges provide good gasket sealing.
- Precision cast and machined surfaces permit safer wire pulling.
- Clear UL and cubic content markings speed approval by inspectors
- Convenient mounting lugs for a variety of mounting methods
- Securely fastened mounting plates reduce costly call backs
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121305 Weatherproof boxes
- Brand Name
- Red Dot
- Special Features
- Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
- Standard
- UL E28688
- Material
- Aluminum Die Cast
- Cubic Capacity
- 31.8
IGCC4429 Weatherproof boxes
TypeDevice Boxes, Covers & Accessories
ApplicationDry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
Number Of Outlet5
ColorSilver
European Specifications (ETIM)
- ETIM
- EC002601 Box/housing for built-in mounting in the wall/ceiling
- Shape
- Rectangular
- Equipped with
- None
- Width
- 117.475mm
- Mounting switching equipment
- Screwing
- Pipe locking
- N
- Inlet from the rear
- Y
- Material
- Other
- Cover
- None
- Sealable
- N
Mounting methodOther
Construction typeDevice connection box (round/square)
Length115.8748mm
Depth52.3748-52.3748mm
With screwsN
Pipe locking optionalN
Number of inlets5
ColourOther
Cover attachmentNot applicable
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 10
- Weight Uom
- 0.81 lbs. Each
Inner Dimensions (inches)4.75x4.63x2.13
Outer Dimensions (inches)10.5x9.8x5.3
