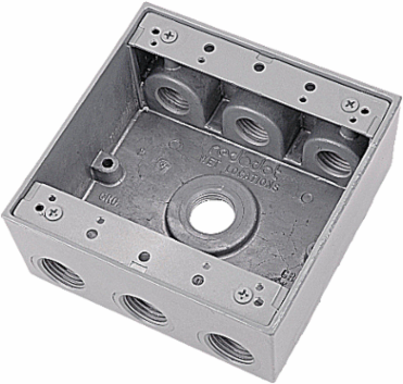

Red Dot 2IH7-2 Weatherproof Box 31.8 Cubic Inches, 7 Outlets, Aluminum, Rectangular, Pack of 10
- MPN: 2IH7-2
- UPC: 042269394544
- PPN: T-B-2IH7-2
CAD
$39.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Two Gang Universal Weatherproof Box, 31.8 Cubic Inches, Hub Size 3/4 Inch, Silver, Aluminum, 7 Outlets with 3 on Top and Bottom and 1 on Back, Pack of 10
Features
- Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
- Clean cover edges provide good gasket sealing.
- Precision cast and machined surfaces permit safer wire pulling.
- Clear UL and cubic content markings speed approval by inspectors
- Convenient mounting lugs for a variety of mounting methods
- Securely fastened mounting plates reduce costly call backs
Specifications
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Quantity | 10 |
| Weight Uom | 0.81 lbs. Each |
| Inner Dimensions (inches) | 4.75x4.63x2.13 |
|---|---|
| Outer Dimensions (inches) | 10.6x9.7x5.4 |
North American Specifications (UNSPSC)
| UNSPSC | 39121305 Weatherproof boxes |
|---|---|
| Brand Name | Red Dot |
| Special Features | Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance |
| Standard | UL E28688 |
| Material | Aluminum Die Cast |
| Cubic Capacity | 31.8 |
| IGCC | 4429 Weatherproof boxes |
|---|---|
| Type | Device Boxes, Covers & Accessories |
| Application | Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations |
| Number Of Outlet | 7 |
| Color | Silver |
European Specifications (ETIM)
| ETIM | EC002601 Box/housing for built-in mounting in the wall/ceiling |
|---|---|
| Shape | Rectangular |
| Equipped with | None |
| Width | 117.475mm |
| Mounting switching equipment | Screwing |
| Pipe locking | N |
| Inlet from the rear | Y |
| Material | Other |
| Cover | None |
| Sealable | N |
| Mounting method | Other |
|---|---|
| Construction type | Device connection box (round/square) |
| Length | 115.8748mm |
| Depth | 52.3748-52.3748mm |
| With screws | N |
| Pipe locking optional | N |
| Number of inlets | 7 |
| Colour | Other |
| Cover attachment | Not applicable |
