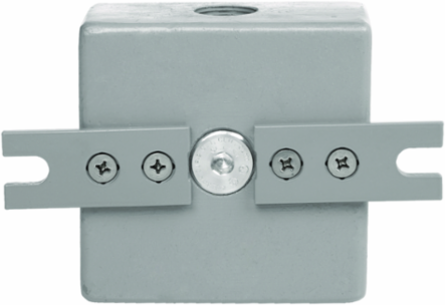

Killark GRSS-3L 1 Inch Aluminum Outlet Body with 7 Internal Hubs & Mounting Lugs
- MPN: GRSS-3L
- UPC: 783936073798
- PPN: HBL-GRSS-3L
- UNSPSC: 39121314
CAD
$587.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1" Aluminum GRSS Outlet Body, 7 Internal Hub Config with Mounting Lugs
Features
- Internal hubs
- Blank cover included (Cat. No. GRRBC)
- Compact design and multiple hub configurations
- Furnished with internal ground screw
- Cast-in brackets on cover for use with breaker-bar tools
- Finished with 7 internal hubs:Comes with mounting lugs
- Internal hubs. Blank cover included (GRRBC). Compact design. Furnished with internal ground screw and mounting lugs. Cast-in brackets on cover for use with breaker-bar tools.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
- Special Features
- Internal hubs. Blank cover included (GRRBC). Compact design. Furnished with internal ground screw and mounting lugs. Cast-in brackets on cover for use with breaker-bar tools.
- Cover Type
- Blank
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1" GR OUTLET BODY W/MOUNTING LUGS
- Harmonization Code
- 7609000000
- Lead Time
- 20 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 2.85
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936073798
- NAICS Code
- 3359326103
Width4.625 in
Hub Size1"
ColorGray
TypeOutlet Body With Cover & Mounting Lugs
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesGR Outlet Bodies Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
