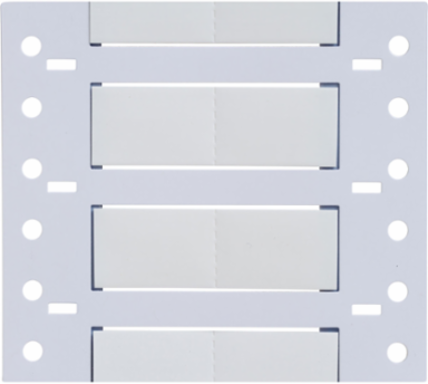

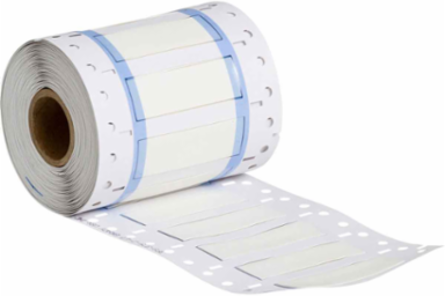

Brady PS-375-2-WT-SC-2 PermaSleeve Wire Marking Sleeves 0.375 Inch Dia x 1 Inch W, 12 AWG
Brady PS-375-2-WT-SC-2 PermaSleeve Wire Marking Sleeves 0.375 Inch Dia x 1 Inch W, 12 AWG
- MPN: PS-375-2-WT-SC-2
- UPC: 662820924500
- PPN: BRD-PS-375-2-WT-SC-2
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$560.48/ EA
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Specifications
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Single-Side Printable
- Printer Compatibility
- BBP12; BBP11; BBP72; IP300; IP600; PR200Plus; PR300Plus; PR600Plus
- Quantity per Roll
- 500
- Recommended Ribbon
- IP-R6600; R6600
- Shrink Ratio
- 3:1
- Suggested Ribbon Series
- R4300; R4502S; R5000; R6600; R6700
- Total Quantity
- 500
- Adhesive (Y/N)
- No
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (mm/cm/m)
- 9.5 mm
- Dimensions (Metric)
- 25.40 mm W x 16.40 mm H
- Height (in/ft/yd)
- 0.645 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.32 in
- Maximum Wire Gauge
- 4 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 3.18 mm
- Recovered Diameter (in/ft/yd)
- 0.125 in
- Roll Width (in/ft/yd)
- 2 in
- Size - Width (mm)
- 25.40 mm
- Sleeve Size (mm/cm/m)
- 9.5 mm Dia x 25.4 mm W
- Sleeve Width (mm/cm/m)
- 25.4 mm
- Vertical Repeat (mm)
- 25.40 mm
- Wire Diameter Range
- 0.125 in to 0.32 in
- Wire Gauge Range
- 12 AWG to 4 AWG
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
For Use with PrinterBBP®11 Label Printer; BBP®12 Label Printer; THT 1" Core Printer
Markers per Roll250
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP12; BBP72
Quantity per Row2
Ribbon SeriesR6600
Sleeve SlitsYes
Total Qty per Pack500 Label(s) / Roll
Trade NamePermaSleeve®
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)0.375 in
Dimensions0.645 in H
Dimensions 20.645 in H
Height (mm/cm/m)16.40 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)8.13 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.125 in
Minimum Wire Gauge12 AWG
Recovered Diameter (mm/cm/m)3.2 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (in/ft/yd)0.375 in Dia x 1 in W
Sleeve Width (in/ft/yd)1 in
Vertical Repeat1 in
Web Width (mm/cm/m)89.00 mm
Wire Gauge12-4
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
