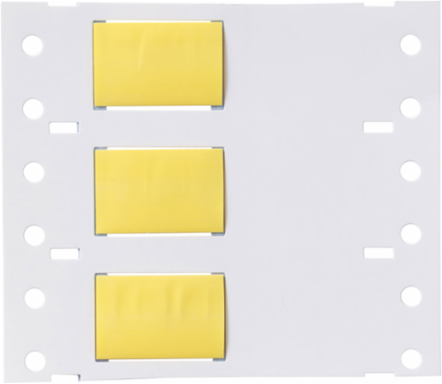

Brady SA-3PS-375-1-YL-J PermaSleeve Heat Shrink Polyolefin Sleeves 0.375 Inch Dia x 1 Inch W, Yellow
- MPN: SA-3PS-375-1-YL-J
- UPC: 754473550080
- PPN: BRD-SA-3PS-375-1-YL-J
- UNSPSC: 55121612
CAD
$3131.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PermaSleeve Heat Shrink Tubing is engineered for thermal transfer or dot matrix printing and is ideal for use in wire identification.
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Bulk Part
- Bulk Part
- Enables Industry Compliance
- ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized

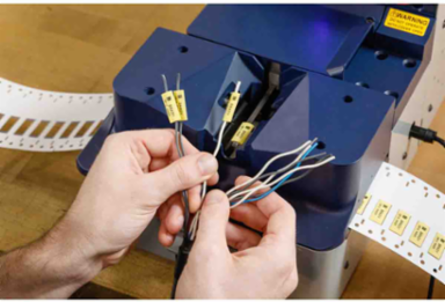

- For Use with Printer
- BradyPrinter i7100; BSP™45 Wire & Cable Sleeve Applicator; THT 3" Core Printer
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer Compatibility
- BP-PR 300 PLUS; BBP72

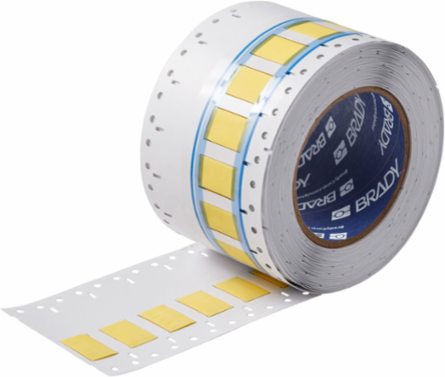

- Quantity per Roll
- 2500
- Recommended Ribbon
- IP-R6606; R6606
- Shape
- Rectangle
- Sleeve Slits
- No
- Total Qty per Pack
- 2500 Sleeve(s) / Roll
- Trade Name
- BSP™45
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (in/ft/yd)
- 0.375 in
- Dimensions
- 0.645 in H
- Dimensions 2
- 0.645 in H
- Height (mm/cm/m)
- 16.40 mm
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 8.13 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.125 in
- Minimum Wire Gauge
- 8 AWG
- Recovered Diameter (mm/cm/m)
- 3.2 mm
- Recovered Wall Thickness (mm/cm/m)
- 0.6 mm
- Roll Width (mm/cm/m)
- 25.4 mm
- Sleeve Size (in/ft/yd)
- 0.375 in Dia x 1 in W
- Sleeve Width (in/ft/yd)
- 1 in
- Vertical Repeat
- 1 in
- Web Width (mm/cm/m)
- 88.9 mm
- Wire Gauge Range
- 8 AWG to 4 AWG
Brand NameBrady®
ColorYellow
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP72
Quantity per Row1
Ribbon SeriesR4300; R6600
Shrink Ratio3:1
Suggested Ribbon SeriesR4300; R4502S; R6600; R6700
Total Quantity2500
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Diameter as Supplied (mm/cm/m)9.5 mm
Dimensions (Metric)25.40 mm W x 16.40 mm H
Height (in/ft/yd)0.645 in
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.32 in
Maximum Wire Gauge4 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)3.18 mm
Recovered Diameter (in/ft/yd)0.125 in
Recovered Wall Thickness (in/ft/yd)0.025 in
Roll Width (in/ft/yd)1 in
Size - Width (mm)25.40 mm
Sleeve Size (mm/cm/m)9.5 mm Dia x 25.4 mm W
Sleeve Width (mm/cm/m)25.4 mm
Web Width (in/ft/yd)3.5 in
Wire Diameter Range0.125 in to 0.32 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
EU RoHS CompliantYes
