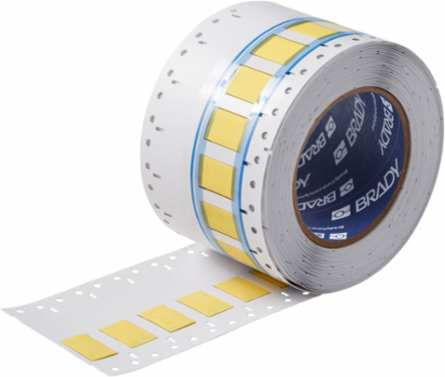

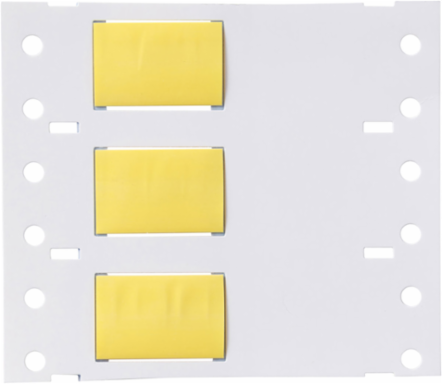

Brady SA-3PS-375-1-YL BSPTM45 PermaSleeve Heat Shrink Sleeves, 0.375 Inch Dia x 1 Inch W, Yellow
- MPN: SA-3PS-375-1-YL
- UPC: 754473550950
- PPN: BRD-SA-3PS-375-1-YL
- UNSPSC: 55121612
CAD
$1179.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PermaSleeve Heat Shrink Tubing is engineered for thermal transfer or dot matrix printing and is ideal for use in wire identification.
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP72
- Quantity per Row
- 1
- Ribbon Series
- R4300; R6600
- Shrink Ratio
- 3:1
- Suggested Ribbon Series
- R4300; R4502S; R6600; R6700
- Total Quantity
- 1000
- Brady Material Number
- B-342
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Diameter as Supplied (mm/cm/m)
- 9.5 mm
- Dimensions (Metric)
- 25.40 mm W x 16.40 mm H
- Height (in/ft/yd)
- 0.645 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.32 in
- Maximum Wire Gauge
- 4 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 3.18 mm
- Recovered Diameter (in/ft/yd)
- 0.125 in
- Recovered Wall Thickness (in/ft/yd)
- 0.025 in
- Roll Width (in/ft/yd)
- 1 in
- Size - Width (mm)
- 25.40 mm
- Sleeve Size (mm/cm/m)
- 9.5 mm Dia x 25.4 mm W
- Sleeve Width (mm/cm/m)
- 25.4 mm
- Web Width (in/ft/yd)
- 3.5 in
- Wire Diameter Range
- 0.125 in to 0.32 in
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized

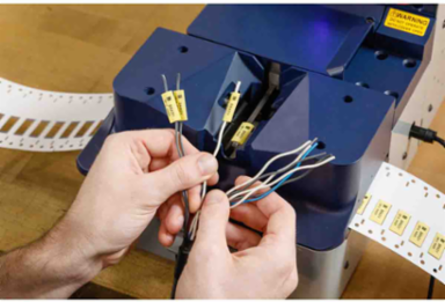

For Use with PrinterBradyPrinter i7100; BSP™45 Wire & Cable Sleeve Applicator; THT 3" Core Printer
Primary Noun, Basic FunctionSleeve
Printable SidesDouble-Side Printable
Printer CompatibilityBP-PR 300 PLUS; BBP72
Quantity per Roll1000
Recommended RibbonIP-R6606; R6606
ShapeRectangle
Sleeve SlitsNo
Total Qty per Pack1000 Sleeve(s) / Roll
Trade NameBSP™45
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-342
Diameter as Supplied (in/ft/yd)0.375 in
Dimensions0.645 in H
Dimensions 20.645 in H
Height (mm/cm/m)16.40 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)8.13 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.125 in
Minimum Wire Gauge8 AWG
Recovered Diameter (mm/cm/m)3.2 mm
Recovered Wall Thickness (mm/cm/m)0.6 mm
Roll Width (mm/cm/m)25.4 mm
Sleeve Size (in/ft/yd)0.375 in Dia x 1 in W
Sleeve Width (in/ft/yd)1 in
Vertical Repeat1 in
Web Width (mm/cm/m)88.9 mm
Wire Gauge Range8 AWG to 4 AWG
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
EU RoHS CompliantYes
