Killark

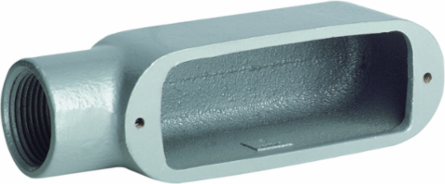

Killark OE-3M 1 Inch E Hub Iron Conduit Body, 12 cu. in Volume, 2 in H, Raintight

1 Inch E Hub Iron Conduit Body, 12 cu. in Volume, 2 in H, Raintight
  • MPN: OE-3M
  • UPC: 783936480275
  • PPN: HBL-OE-3M
  • UNSPSC: 39131708

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$84.71/ EA

Description

1" E Hub, Iron O Series Conduit Body

Features

  • Raintight when used with gasketed covers.
  • Malleable iron suitable for use in concrete.
  • Interchangeable with competitive products.
  • Stainless steel screws on stamped and cast covers.
  • Tapered threaded hubs (NPT).
  • Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 12 cu. in.

Specifications

Specifications

Country of Origin
India
Hazardous Rating(s)
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Color
Gray
Hub Size
1"
Special Features
Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 12 cu. in.
Width
2 in
Class Code
D30
Freight Class Code
06316009
Image Actual Or Representative
R
MSDS Flag
No
Returnable Indicator
Yes
CSA File Number
LR11852
Hub Pattern
E
Material
Iron
Base Unit of Measure
EA
Carton - Gross Weight per Pack
7.300 lb.
Carton - Pack Description
Carton
Carton - Total Units
5
Dimensions7 in x 2 in x 2 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height2 in
Length7 in
TypeConduit Body
ARRA CompliantContact Manufacturer
Description - Invoice1" DURALOY CONDUIT BODY TYPE E
Harmonization Code7307193060
Lead Time70 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging1.46
UL File NumberE3397
SeriesO Series
BOX SIZE2.000x7.000x2.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936480275
Master Pack DescriptionEach

Certifications

EU RoHS Indicator
Contact Manufacturer

Downloads
