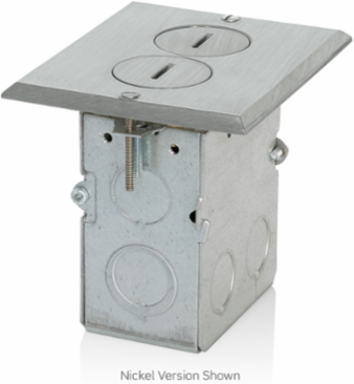

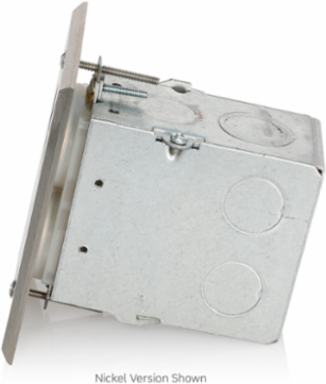

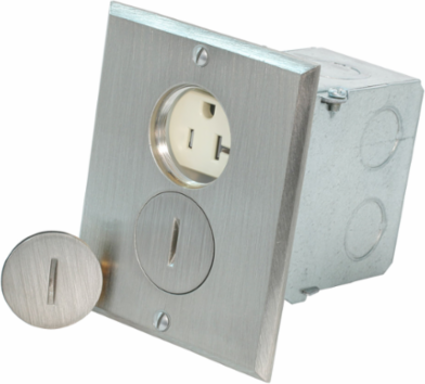

Leviton 25349-TFN 20 Amp 1-Gang Floor Box Assembly, Tamper-Resistant, Ivory, UL498, Brass Contacts
- MPN: 25349-TFN
- UPC: 078477749784
- PPN: LEV-25349-TFN
CAD
$171.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1-Gang Floor Box Receptacle Assembly, 20 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Steel Strap, Nickel-Finish Plate - IVORY
Features

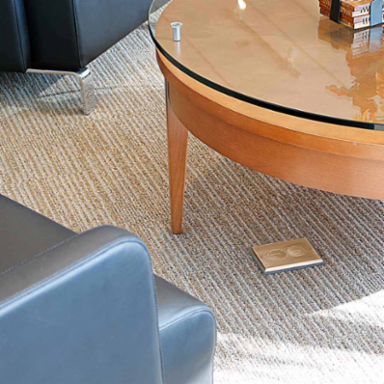

- For low profile, in-floor receptacle installations, our Floor Box Receptacle Assemblies are the perfect fit. Available in both 15 & 20 Amp 1- and 2-gang configurations, these devices are suitable for wood frame construction with carpet, wood, tile, and vinyl finished flooring. Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13399
CSA C22.2 No. 42File E152105
NOM057
Warranty2-Year Limited
Material Specifications
- Body Material
- Nylon
- Color
- Ivory
- Floorplate Material
- Solid Brass 0.060 In Thick
- Grounding Screw
- Brass 8-32
- Shutter Mechanism
- Delrin® Acetal
- Terminal Screws
- Brass 8-32
Clamp NutsZinc-Plated Steel
Face MaterialNylon
Ground ClipsBrass-Plated
Line ContactsBrass Triple-Wipe .031 Thick
Strap MaterialZinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.14-10 AWG
TerminationBack & Side
Product Features
- Type
- Wood Frame
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
