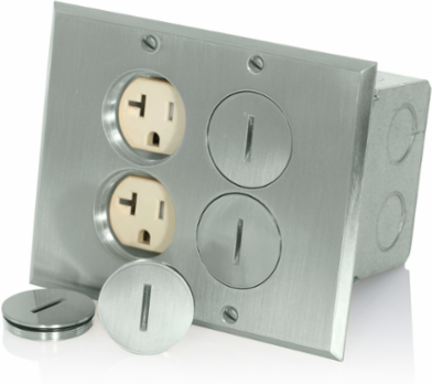

Leviton 35349-TFN Floor Box Assembly with (2) 20 Amp Tamper-Resistant Outlets, Ivory Finish
- MPN: 35349-TFN
- UPC: 078477742167
- PPN: LEV-35349-TFN
CAD
$248.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2-Gang Floor Box, 20 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Steel Strap, Nickel-Finish Plate - IVORY
Features
- For low profile, in-floor receptacle installations, our Floor Boxes are the perfect fit. Available in both 15 & 20 Amp configurations, these devices are suitable for wood frame construction with carpet and wood finished flooring, Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL498 | File E13399 |
| CSA C22.2 No. 42 | File E152105 |
|---|---|
| NOM | 057 |
| Warranty | 2-Year Limited |
Material Specifications
| Body Material | Nylon |
|---|---|
| Color | Ivory |
| Floorplate Material | Solid Brass 0.060 In Thick |
| Grounding Screw | Brass 8-32 |
| Shutter Mechanism | Delrin® Acetal |
| Terminal Screws | Brass 8-32 |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Face Material | Nylon |
| Ground Clips | Brass-Plated |
| Line Contacts | Brass Triple-Wipe .031 Thick |
| Strap Material | Zinc-Plated Steel |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Terminal Accom. | 14-10 AWG |
|---|---|
| Termination | Back & Side |
Product Features
| Type | Wood Frame |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| At Rated Voltage | 1 HP |
|---|
