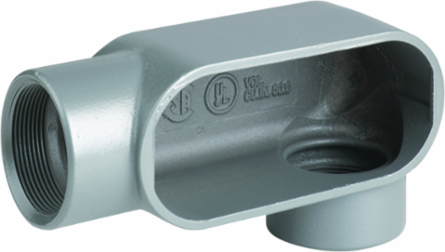

Killark LL37 1 Inch Iron Conduit Body, NEMA 3 Seal, Wet Location Suitable
Killark LL37 1 Inch Iron Conduit Body, NEMA 3 Seal, Wet Location Suitable
- MPN: LL37
- UPC: 783936011127
- PPN: HBL-LL37
- UNSPSC: 39131708
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$81.31/ EA
Description
1" LL Hub, Iron Duraloy 7 Conduit Body
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Specifications
Specifications
- Finish
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Hub Size
- 1"
- Width
- 7 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Type
- Conduit Body
- Description - Invoice
- DURALOY7 1" LL COND. BDY FE
- Harmonization Code
- 7307110200
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 1.79
- UL File Number
- E3397
- Series
- Duraloy 7 Series
- BOX SIZE
- 4.125x11.875x7.500 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936011127
- Master Pack Description
- Each
Special FeaturesIntermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Country of OriginIndia
Dimensions11 in x 7 in x 3.75 in
Height3.75 in
Length11 in
Engineering Drawing 1 Display TextLL37 Engineering Drawing
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternLL
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.950 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
