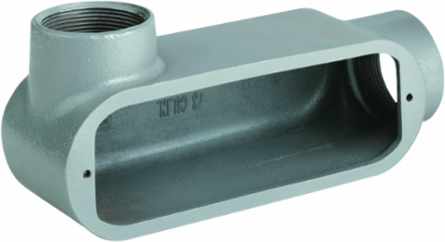

Killark OLL-3M 1 Inch LL Hub Malleable Iron Conduit Body, Raintight, 12 cu. in Volume
Killark OLL-3M 1 Inch LL Hub Malleable Iron Conduit Body, Raintight, 12 cu. in Volume
- MPN: OLL-3M
- UPC: 783936480541
- PPN: HBL-OLL-3M
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$81.97/ EA
Description
1" LL Hub, Iron O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 12 cu. in.
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 2.563 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 2 in
- Length
- 6.25 in
- Type
- Conduit Body
- Weight
- 1.51 lb.
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- LL
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 7.550 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Pallet - GTIN - Package
- 50783936480546
- Pallet Weight
- 0.000 lb.
Dimensions6.25 in x 2.563 in x 2 in
Hazardous Rating(s)Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
ColorGray
Hub Size1"
Special FeaturesTapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 12 cu. in.
Width2.563 in
ARRA CompliantContact Manufacturer
Description - Invoice1" DURALOY CONDUIT BODY TYPE LL
Harmonization Code7307193060
Lead Time70 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging1.51
UL File NumberE3397
SeriesO Series
BOX SIZE4.500x10.750x6.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936480541
Master Pack DescriptionEach
Pallet - Total Units2100 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
