Killark

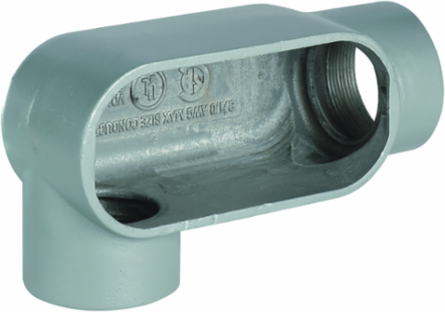

Killark LR37 1 Inch Iron Conduit Body with Innovative Spring Clip Design

1 Inch Iron Conduit Body with Innovative Spring Clip Design
  • MPN: LR37
  • UPC: 783936011226
  • PPN: HBL-LR37
  • UNSPSC: 39131708

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$93.86/ EA

Description

1" LR Hub, Iron Duraloy 7 Conduit Body

Features

  • Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
  • Suitable for wet locations when used with gaskets.
  • High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
  • Innovative spring clip design for installation ease and repeat usage.
  • For use with threaded rigid conduit steel or aluminum.
  • Flat-back design for greater wiring capacity and mounting stability.
  • Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl

Specifications

Certifications

EU RoHS Indicator
Contact Manufacturer

Specifications

Finish
Powder Epoxy Paint
ARRA Compliant
Contact Manufacturer
Color
Gray
Hazardous Rating(s)
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Hub Size
1"
Weight
1.7 lb.
Engineering Drawing 1 Display Text
LR37 Engineering Drawing
Finish Type
Powder Epoxy Paint
Class Code
D30
Freight Class Code
06316009
Image Actual Or Representative
R
MSDS Flag
No
Returnable Indicator
Yes
CSA File Number
LR11852
Hub Pattern
LR
Material
Iron
Base Unit of Measure
EA
Carton - Gross Weight per Pack
9.200 lb.
Carton - Pack Description
Carton
Carton - Total Units
5 EA
Special FeaturesIntermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Country of OriginSTL
Dimensions7 in x 11 in x 3.75 in
Height3.75 in
Length7 in
Width11 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
TypeConduit Body
Description - InvoiceFORM 7, CNDT BODY, 1 TYPE LR IRON
Harmonization Code7307110200
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging1.7
UL File NumberE3397
SeriesDuraloy 7 Series
BOX SIZE4.125x11.875x7.500 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936011226
Master Pack DescriptionEach
