1 Inch Aluminum LR Type Conduit Body with Easy Access Covers and 11.5 cu. in Volume
Killark

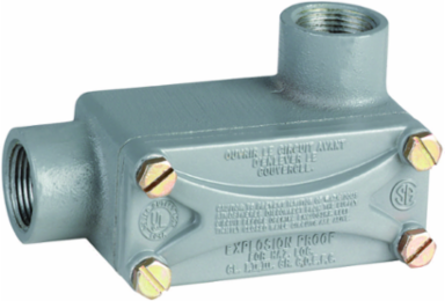

Killark XLR-3 1 Inch Aluminum LR Type Conduit Body with Easy Access Covers and 11.5 cu. in Volume

  • MPN: XLR-3
  • UPC: 783936910093
  • PPN: HBL-XLR-3
  • UNSPSC: 39131708

CAD

$178.71

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

1" LR Type, Aluminum X Series Conduit Body

Features

  • Rated for Harsh and Hazardous locations (see specifications for ratings)
  • Integral bushings
  • Easy access covers
  • Integral bushings. Easy access covers. Volume is 11.5 cu. in.

Specifications

Key Specifications

Country of Origin
United States
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Color
Gray
Hub Size
1"
Special Features
Integral bushings. Easy access covers. Volume is 11.5 cu. in.
Width
6 in
ARRA Compliant
Contact Manufacturer
Description - Invoice
1" LR TYPE AL HAZ LOC FITTING
Harmonization Code
7609000000
Lead Time
42 wk
Order Multiple
1 EA
Sub Class Code
D30D237
Gross Weight with Packaging
1.67
UL File Number
E10514
Series
X Series
BOX SIZE
(in)
Master Pack Description
Each
Dimensions7.5 in x 6 in x 4 in
ApplicationFor use in hazardous locations.
Height4 in
Length7.5 in
TypeConduit Body
Engineering Drawing 1 Display TextXLR-3 Engineering Drawing
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
Hub PatternLR
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936910093
NAICS Code3359323110

Certifications

EU RoHS Indicator
Contact Manufacturer
