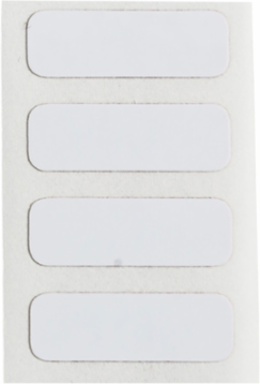

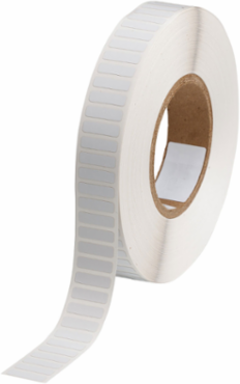

Brady THT-49-719-10 Matte Polyimide Labels, 0.25 Inch H x 0.9 Inch W, 10000 Labels, ESD Safe
- MPN: THT-49-719-10
- UPC: 754473924959
- PPN: BRD-THT-49-719-10
- UNSPSC: 55121612
CAD
$1109.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

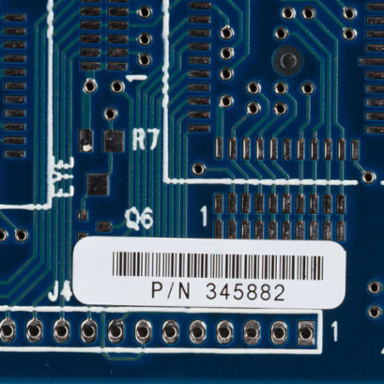

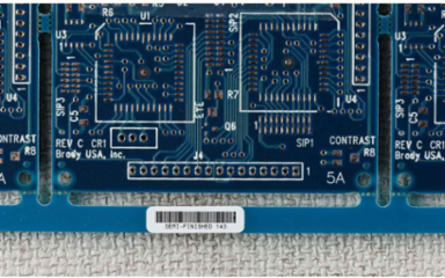

Static Dissipative Polyimide (B-719) withstands wave solder environments and multiple harsh washes for printed circuit board and electronic component preprocess labeling.
Features
- Low profile, high temperature, matte white polyimide material features a static dissipative adhesive and static dissipative release liner
- Surface resistivity values in the recommended range for Dissipative ESD packaging materials as defined by ANSI/ESD S541-2008
- UL Approved;Meets requirements of MIL-STD-202G, Method 215K
- Service temperature of -94 to 212° F (-70 to 100° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling
- Brand Name
- Brady®
- Color
- White
- Diagram
- Icon 3 (triangle)
- For Use with Printer
- BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Label/Media Format
- Roll
- Patent Valid in (Countries)
- USA
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
- Quantity per Roll
- 10000
- Recommended Ribbon
- IP-R6006; R6006
- Shape
- Rectangle
- Total Qty per Pack
- 10000 Label(s) / Roll
- Trade Name
- UltraTemp®
- Adhesive Type
- Static Dissipative Permanent Acrylic
- Brady Material Number
- B-719
- Material
- Polyimide
- SAP B-Number
- B-719
- Dimensions
- 0.25 in H x 0.9 in W
- Dimensions 2
- 0.25 in H x 0.9 in W
- Height (mm/cm/m)
- 6.35 mm
- Maximum Service Temperature °C
- 300 °C
- Minimum Service Temperature °C
- -70 °C
- Sign Size-General
- 0.25 in x 0.9 in
- Thickness (in/ft/yd)
- 0.0033 in
- Vertical Repeat
- 0.35 in
- Web Width (mm/cm/m)
- 27.94 mm
- Width (mm/cm/m)
- 22.86 mm
Board ApplicationSMT - Top/Bottom; Static Dissipative; Through Hole - Bottom; Through Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
FinishMatte
IndustryAerospace; Automotive; Electronics; Manufacturing
Patent Number(s)5958537
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsCircuit Board
Printer Compatibility (Print)BBP12; i7100; i5100
Quantity per Row1
Ribbon SeriesR6000HF
Suggested Ribbon SeriesR4700; R6000 Halogen Free
Total Quantity10000
Adhesive (Y/N)Yes
After ProcessYes, this material will work with this application
Label PropertiesHeat Resistant Labels; Permanent Adhesive Labels
Material PropertiesLow Profile; Static-dissipative
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)22.86 mm W x 6.35 mm H
Height (in/ft/yd)0.25 in
Label/Tape Size (in/ft/yd)0.25 in H x 0.9 in W
Maximum Service Temperature °F572 °F
Minimum Service Temperature °F-94 °F
Size - Width (mm)22.86 mm
Thickness (mm/cm/m)0.084 mm
Vertical Repeat (mm)8.89 mm
Width (in/ft/yd)0.9 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Yes - Other Heavy Metals
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalNickel
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
