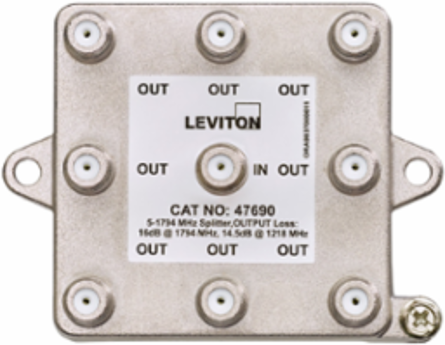

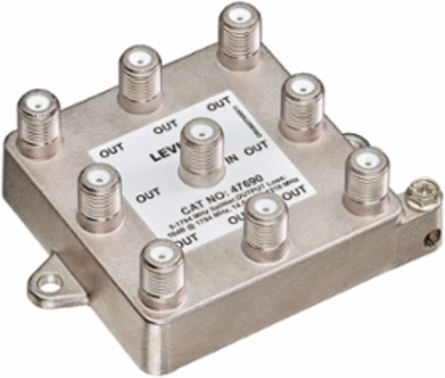

Leviton 47690-G8 1 x 8 (8-Way) 2GHz Passive Video Splitter, Digital Signal Splitter for 6-8 TVs
Leviton 47690-G8 1 x 8 (8-Way) 2GHz Passive Video Splitter, Digital Signal Splitter for 6-8 TVs
- MPN: 47690-G8
- UPC: 078477227404
- PPN: LEV-47690-G8
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$59.00/ EA
Description
6- and 8-way Passive Video Splitters and Passive Video Splitter Modules are ideal for splitting digital cable, quality cable TV, and off-air signals to six or eight televisions throughout a home or office. Passive Video Splitter Modules are designed for easy installation in any Leviton 14", 21", 28", or 42" STRUCTURED MEDIA™ Center. Passive Video Splitters are easily installed in Leviton MDU Enclosures or used in any application where a passive video splitter is needed. These units feature die-cast housings and printed circuit board construction
Features
- Split video signals with outputs for six or eight televisions
- Provide digital cable, cable TV, and other video services via coaxial cable to any room in a house or office
- Durable gold-plated 360-degree insert pin resists oxidation, maintaining a distortion-free signal for digital data transmission
- Weather sealed F-ports up to 30 PSI
- 75 Ohm termination caps with splitter modules
- 6kV surge protection
- Built-in capacitors on all ports block DC or low-frequency AC and also prevent current from flowing through splitter’s ferrite core windings that cause hum modulation
- High-quality plating passes 1200-hour salt spray test
- Maintains low temperature stability from -40 °C to +85 °C both in isolation and return loss
Specifications
Specifications
- Country of Origin
- China
RoHS CompliantFalse
