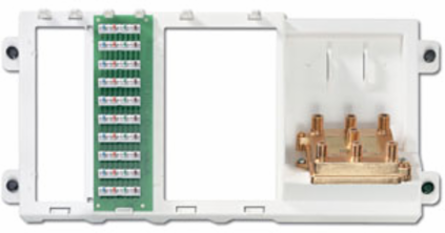

Leviton 47606-BTV Basic Telephone & Video Panel with 1x9 Bridged Board, 6-Way Video Splitter, 2.28 Inch Depth, 2 GHz Frequency
- MPN: 47606-BTV
- UPC: 078477057650
- PPN: LEV-47606-BTV
CAD
$202.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Leviton's Basic Telephone and Video Panel combines a 1x9 Bridged Telephone Board and a 6-way 2 GHz Video Splitter in a dedicated plastic bracket for essential telephone and video distribution. It handles up to four telephone lines through to nine telephone connections, making it suitable for phone, fax or modem. The panel features video output for up to six video connections
Features
- Handles up to four telephone lines through to 9 telephone connections, and 6 video connections.
- Panel includes a plastic bracket, 1X9 Bridge Telephone Board and a 6-Way 2 GHz Video Splitter.
- Fits into any Leviton Structured Media enclosure or used as a stand-alone unit.
- Offers essential telephone and video distribution
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| CULUS Listed | Yes |
|---|---|
| TIA/EIA | 568A |
| FCC Rated | Part 68 Compliant |
|---|
Material Specifications
| Bracket Material | ABS Plastic |
|---|
Mechanical Specifications
| Telephone Bridge | Ten Bridged 4-Pair 110-Type IDC Connectors |
|---|---|
| Video Splitter Frequency | 2 GHz |
| Video Splitter | 1 F-Type Female Input, 6 F-Type Female Output |
|---|
Structured Media Components
| 1X9 Bridged Telephone Module | 1 |
|---|
| 6-Way Video Splitter | 1 |
|---|
Dimensional Data
| Depth | 2.28 Inch |
|---|---|
| Width | 13.3 Inch |
| Height | 6.13 Inch |
|---|
Product Features
| Description | Basic Telephone and Video |
|---|---|
| Type | Full Size Pre-Configured Cabling Panel |
| Standards and Certifications | CULUS/FCC/TIA/EIA |
|---|---|
| Warranty | 2-Year Limited |
