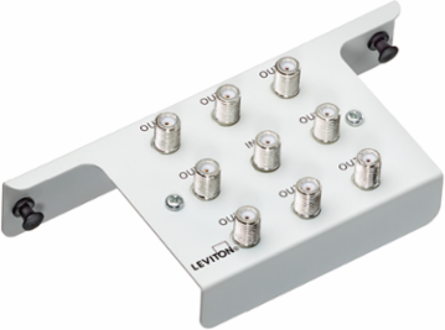

Leviton 47690-8C2 1x8 Passive Video Splitter Module, 2 GHz, 8 F-Type Outputs, 75 Ohm
- MPN: 47690-8C2
- UPC: 078477058480
- PPN: LEV-47690-8C2
CAD
$107.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1x8 Passive Video Splitter Module, 2 GHz, 8 F-Type Outputs, 75 Ohm
Features
- Splits Video signals, Outputs for up to 8 televisions.
- Provide digital cable, cable tv and other video services, via coaxial cable to any room in the house.
- Die-cast housing and printed circuit board.
- Use with the Video Amplifier to increase signal quality, analog or standard cable applications only.
- Units come with mounting bracket for simple installation in Leviton's Structured Media Enclosures.
- 75 Ohm termination caps included for unused connectors.
- Gold-flashed contacts on unit provide lowest conductive resistance.
Documentation & Downloads
Specifications
Mechanical Specifications
- Frequency Range
- 2 GHz
- Style Name
- 1X8
- F-Type Outputs
- 8
F-Type Inputs1
AC Power AdapterNo
Product Features
- Warranty
- 2-Year Limited
- Color
- White
- Country Of Origin
- China
- Impedance
- 75 Ohm
- Style Name
- 1X8
Frequency Range2 GHz
Standards and CertificationsMeets all applicable standards
AC Power AdapterNo
TypePassive Video Splitter
Performance Data
- Impedance
- 75 Ohm
- Return Loss dB Forward
- 9.9 dB - 30.0 dB
Isolation dB32.0 dB - 39.2 dB
Insertion Loss dB11.9 dB - 15.7 dB
Material Specifications
- Color
- White
Bracket MaterialSteel Powder-Coated
