Leviton 47606-BNP Basic Home Networking Plus Panel - 13.3 Inch Width, 6.13 Inch Height, 2 GHz Video Splitter
- MPN: 47606-BNP
- UPC: 078477134153
- PPN: LEV-47606-BNP
CAD
$298.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

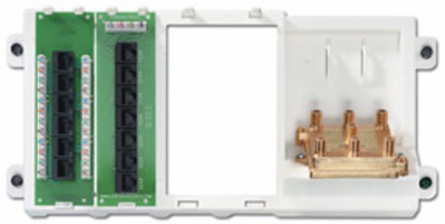

Leviton’s Basic Home Networking Plus Panel combines a Telephone Patching Expansion Board, Category 5e Voice & Data Board and a 6-way 2 GHz Video Splitter in a dedicated plastic bracket for essential telephone, video distribution and home networking. Handles up to four telephone lines through to seven connections. Suitable for phone, fax or modem. The panel also features six connections for voice or data
Features
- Handles up to six 4-line telephone connections and routes video to 6 locations.
- Provides data or telephoine to 6 remote locations.
- Panel includes a plastic bracket, Telephone Patching Expansion Board, and a Catagory 5e Voice and Data Board.
- Fits into any Leviton Structured Media enclosure or used as a stand-alone unit.
- Offers essential telephone, video distribution and home networking.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| CULUS Listed | Yes |
|---|---|
| TIA/EIA | 568A |
| FCC Rated | Part 68 Compliant |
|---|
Material Specifications
| Bracket Material | ABS Plastic |
|---|
Mechanical Specifications
| Cat 5e Voice Data | Six Catagory 5e ports and six 110-IDC Conn. |
|---|---|
| Video Splitter | 1 F-Type Female Input, 6 F-Type Female Output |
| Telephone Patching Expansion | 1 |
|---|---|
| Video Splitter Frequency | 2 GHz |
Structured Media Components
| 6-Way Video Splitter | 1 |
|---|---|
| Telephone Patching Expansion | 1 |
| Cat 5e Voice Data Module | 1 |
|---|
Dimensional Data
| Depth | 2.28 Inch |
|---|---|
| Width | 13.3 Inch |
| Height | 6.13 Inch |
|---|
Product Features
| Description | Basic Home Networking Plus |
|---|---|
| Type | Full Size Pre-Configured Cabling Panel |
| Standards and Certifications | CULUS/FCC/TIA/EIA |
|---|---|
| Warranty | 2-Year Limited |
