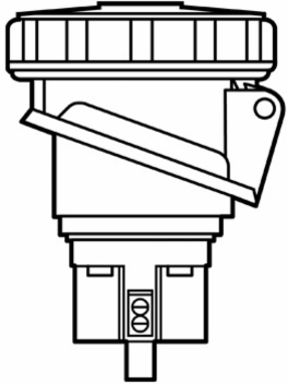

Pass & Seymour PS5100R7W Pin & Sleeve Watertight 100A 3øY 277V/480V Receptacle
Pass & Seymour PS5100R7W Pin & Sleeve Watertight 100A 3øY 277V/480V Receptacle
- MPN: PS5100R7W
- UPC: 785007051049
- PPN: P-S-PS5100R7W
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$817.77/ EA
Description
4-Pole, 5-Wire, Pin and Sleeve Receptacle. 100A, 3Y, 277/480V.
Features
- Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
- Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
- Nylon construction for highimpact and corrosion resistance.
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
- Natural-rubber grommets provide watertight protection at cable entry.
- Combination-head screws for added convenience and quick installation.
- Revolutionary, hinged cord grip for durable performance and ease of installation.
- Cover with integral neoprene gasket provides watertight seal.
Specifications
Specifications
- Height
- 6.6 in
- Special Features
- Pin & Sleeve devices, Nylon construction for high impact, combination head screws, rating compliance visible
- Color
- Gray
- Country of Origin
- United States
- Wire Size
- 2 AWG
- Standard
- UL Listed
- Number of Poles
- 4-Way
Length5.6 in
Width5.2 in
Product LinePass & Seymour
Voltage277.0 V
Amperage100.0 A
Number of Wires5.0
Application SectorCommercial
