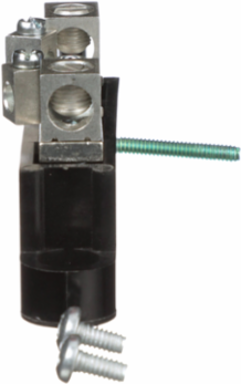

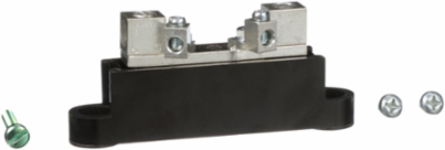

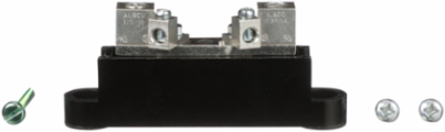

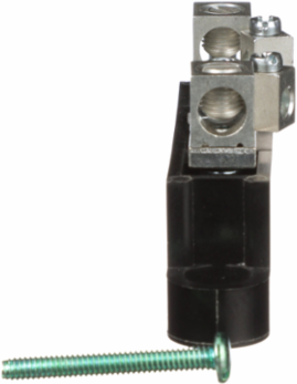

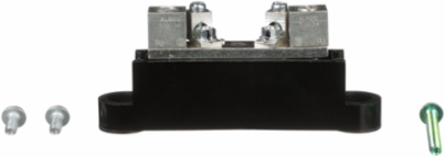

Square D CH100SN 100A Heavy Duty Safety Switch Solid Neutral Assembly
- MPN: CH100SN
- UPC: 785901994787
- PPN: SCH-CH100SN
CAD
$59.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Electrical interlocks for Series F, 60A, fusible, general duty safety switches, are available in kit form for field installation. Each kit contains instructions for proper field mounting. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Switches with electrical interlocks installed are UL Listed. This heavy duty safety switch solid neutral assembly has a rated current of 100A.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Product Or Component Type
- safety switch solid neutral assembly
Range Of ProductSquare D
Complementary
- Tightening Torque
- 20...45 lbf.in, AWG 14, copper or aluminum || 20...45 lbf.in, AWG 14...AWG 6, copper or aluminum
- Awg Gauge
- AWG 14 copper or aluminum || AWG 14...AWG 6 copper or aluminum
[In] Rated Current100 A
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1304031
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
