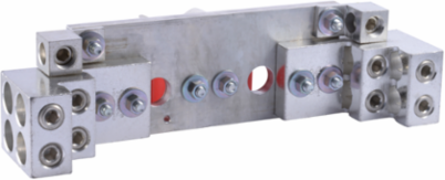

Square D H800SNE4 Heavy Duty Safety Switch with Solid Neutral Assembly, 800A
- MPN: H800SNE4
- UPC: 785901534754
- PPN: SCH-H800SNE4
- UNSPSC: 39122205
CAD
$699.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. These switches come on fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This safety switch accessory is a field-installed standard neutral kit for 800A rated heavy duty safety switches. Terminal data for this assembly is (6) 750 kcmil aluminum/copper or (2) 350 kcmil aluminum/copper. Safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
Features
- Solid neutral assembly for heavy duty safety switches,800A rated
- Solid neutral assembly is used with E4 series switches.
- Factory or field-installed, insulated, groundable
- Terminal data for is (6) AWG 3/0–750 kcmil plus (2) AWG 6–350 kcmil Service Ground copper or aluminum
- Accessories for heavy duty safety switches are UL Listed.
- Quick-make, quick-break operating mechanism.
- Suitable for use as service entrance equipment
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
- UL listed
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Complementary Attributes
| Line Rated Current | 800 A E2, 800 A E4 |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Awg Gauge | 750 kcmil copper or aluminium, 350 kcmil copper or aluminium |
| Local Publishable Date | 2026-08-25 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1917 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Square D |
| Series Name | heavy duty |
| Tightening Torque | lugs 500 lb.in, 3/0 AWG...750 kcmil, copper or aluminiumlugs 275 lb.in, 6 AWG...350 kcmil, copper or aluminium |
| Customs Code | 8538908160 |
| Warranty In Months | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Or Component Type | safety switch solid neutral assembly |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Mercury Free | Yes |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Without Single Use Plastic | Yes |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | safety switch solid neutral assembly |
|---|
| Range Of Product | Square D |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
