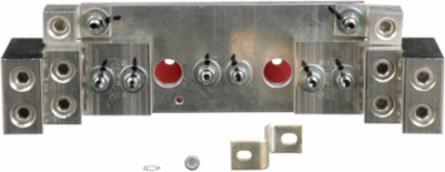

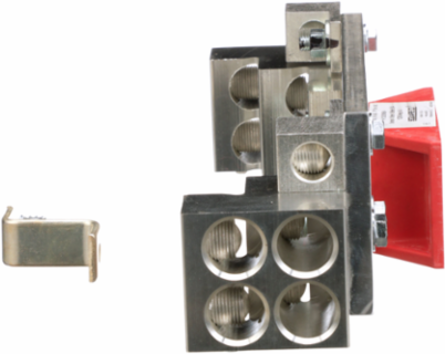

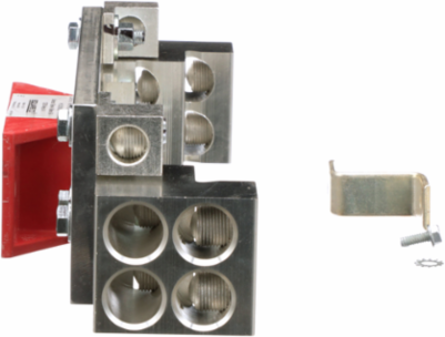

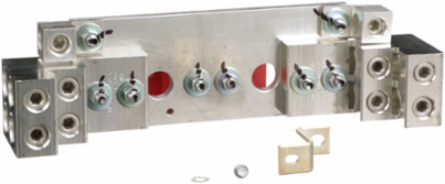

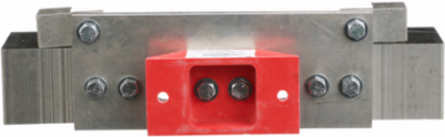

Square D H1200SNE4 Heavy Duty Safety Switch, 1200A, Solid Neutral Assembly
- MPN: H1200SNE4
- UPC: 785901534969
- PPN: SCH-H1200SNE4
CAD
$766.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. These switches come on fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This safety switch accessory is a field-installed standard neutral kit for 1200A rated heavy duty safety switches. Terminal data for this assembly is (8) 750 kcmil aluminum/copper or (2) 350 kcmil aluminum/copper. Safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Complementary Attributes
- Line Rated Current
- 1200 A E2, 1200 A E3
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Awg Gauge
- 750 kcmil copper or aluminium, 350 kcmil copper or aluminium
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1906
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Or Component Type
- safety switch solid neutral assembly
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductSquare D
Series Nameheavy duty
Tightening Torquelugs 500 lb.in, 3/0 AWG...750 kcmil, copper or aluminiumlugs 275 lb.in, 6 AWG...350 kcmil, copper or aluminium
Package Weight(Lbs)3.166 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- safety switch solid neutral assembly
Range Of ProductSquare D
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
