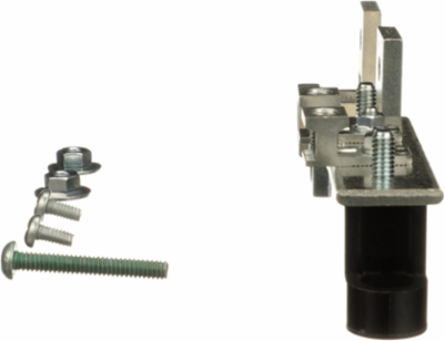

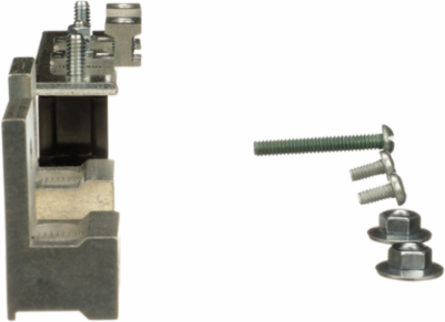

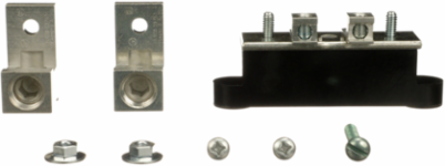

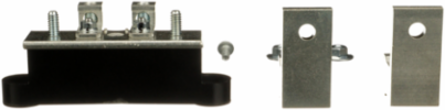

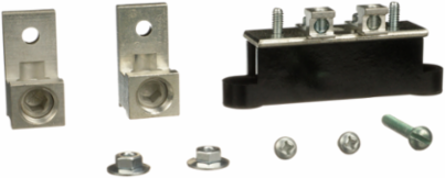

Square D CH200SN Heavy Duty Safety Switch Solid Neutral Assembly 200A, Copper/Aluminum
- MPN: CH200SN
- UPC: 785901994800
- PPN: SCH-CH200SN
CAD
$97.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. These switches come on fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This safety switch accessory is a field-installed standard neutral kit for 200-225A rated heavy duty safety switches. Terminal data for this assembly is 6-250 kcmil copper or aluminium. Safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Complementary Attributes
- Line Rated Current
- 200 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Awg Gauge
- 6 AWG...250 kcmil copper or aluminium, 12 AWG...2 AWG copper or aluminium
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1906
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Or Component Type
- safety switch solid neutral assembly
- Returnability
- Yes
- Sustainable Packaging
- No
- Package Weight(Lbs)
- 349.3 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Tightening Torque50 lb.in, 3 AWG...2 AWG45 lb.in, 6 AWG...4 AWG40 lb.in, 8 AWG35 lb.in, 12 AWG...10 AWG, 35 lb.in, 14 AWG...10 AWG
Local Publishable Date2026-07-03
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category4
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductSquare D
Series Nameheavy duty
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- safety switch solid neutral assembly
Range Of ProductSquare D
